| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
16,000 pcs
|
16000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Pitch | |
| SVHC Present |

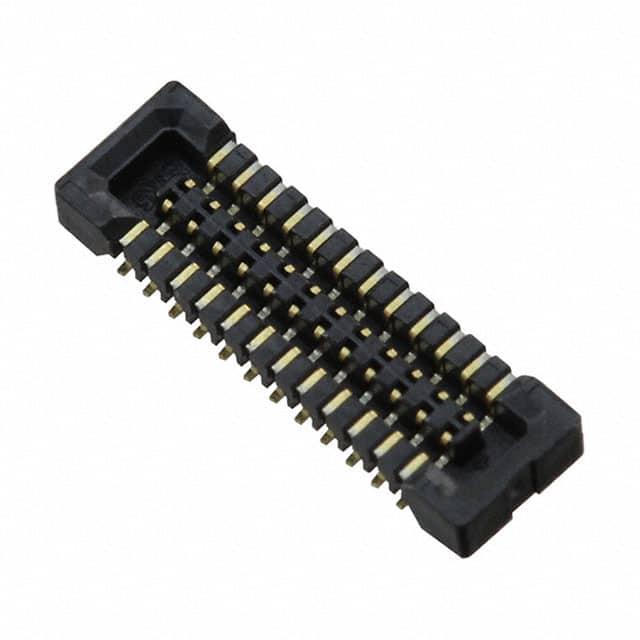

The BM14B(0.8)-20DS-0.4V(51) from Hirose Electric is a 20-position receptacle connector with center strip contacts, designed for board-to-board stacking applications. It features a 0.4mm pitch and 2 rows of contacts, providing a compact, high-density interconnect solution.
The connector is surface mount (SMT) with a height above board of 0.031 inches (0.80mm) and a mated stacking height of 0.8mm. The contacts are gold-plated with a thickness of 2.00µin (0.051µm), ensuring reliable signal integrity. The solder retention feature helps maintain mechanical stability during assembly.
This connector is suitable for use in mezzanine (board-to-board) configurations where space is limited. The 0.4mm pitch allows for high-density routing, while the 2-row design provides a balanced number of I/O. The gold finish offers corrosion resistance and good conductivity.
| Qty | Low | High |
|---|---|---|
| 8,000+ | $0.60 | $0.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
20 positions.
0.40mm.
Surface Mount.
Gold.
0.031 inches (0.80mm).
0.8mm.
Solder Retention.
