| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
494 pcs
|
494 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

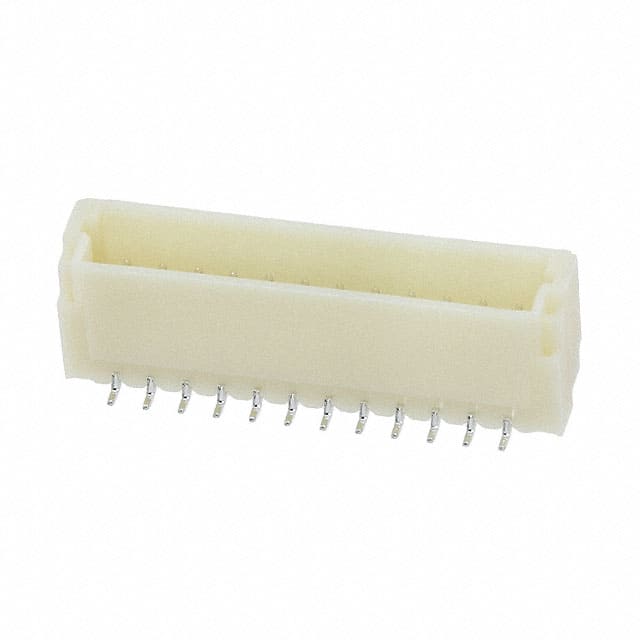

The BM12B-SRSS-TBT(LF)(SN) is a 12-position, single-row header connector designed for board-to-cable/wire applications. It features a 1.00mm pitch, making it suitable for compact electronic assemblies. The connector is shrouded with a 4-wall design, providing protection for the male pins and ensuring reliable mating.
The header is surface mount (SMD) with solder termination, and includes pick-and-place and solder retention features for automated assembly. Contacts are made of copper alloy with a tin finish, and the insulator is natural polyamide (nylon) with a UL94 V-0 flammability rating.
Electrical ratings are 1A per contact and 50V, with an operating temperature range of -25°C to 85°C. The part is lead-free (indicated by the LF suffix) and is RoHS3 compliant (unverified).
12 positions.
1.00mm.
1A.
50V.
Surface mount.
-25°C to 85°C.
Yes, it has a shrouded 4-wall design.
