| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
653 pcs
|
653 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

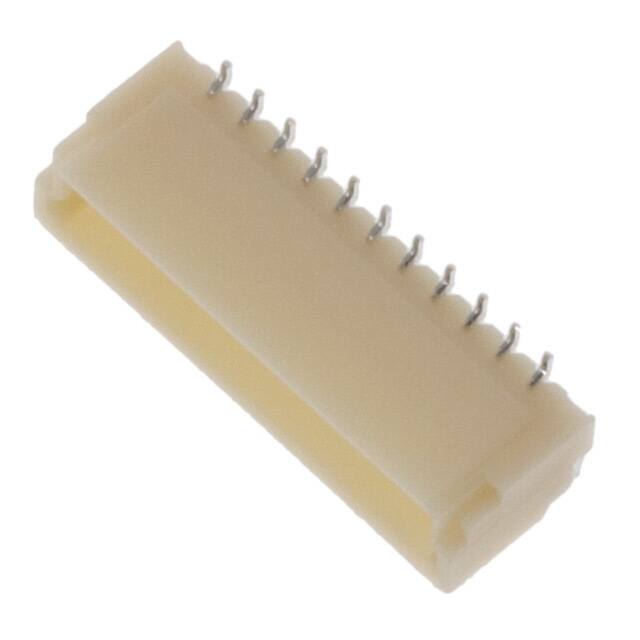

The BM11B-SRSS-TBT(LF)(SN) is a 11-position, single-row, surface mount header from JST Manufacturing. It features a 1.00mm pitch and a shrouded 4-wall design for secure mating. The connector is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. The insulation is made of polyamide (nylon) in natural color, with a flammability rating of UL94 V-0. Contacts are copper alloy with tin finish. The header includes features for pick-and-place assembly and solder retention. It is designed for board-to-cable/wire applications. The termination is solder, and the fastening type is push-pull. All 11 positions are loaded. The connector is RoHS3 compliant and REACH unaffected (unverified).
11 positions.
1.00mm.
1A.
50V.
Surface mount.
-25°C to 85°C.
Shrouded - 4 Wall.
