| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,352 pcs
|
2352 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

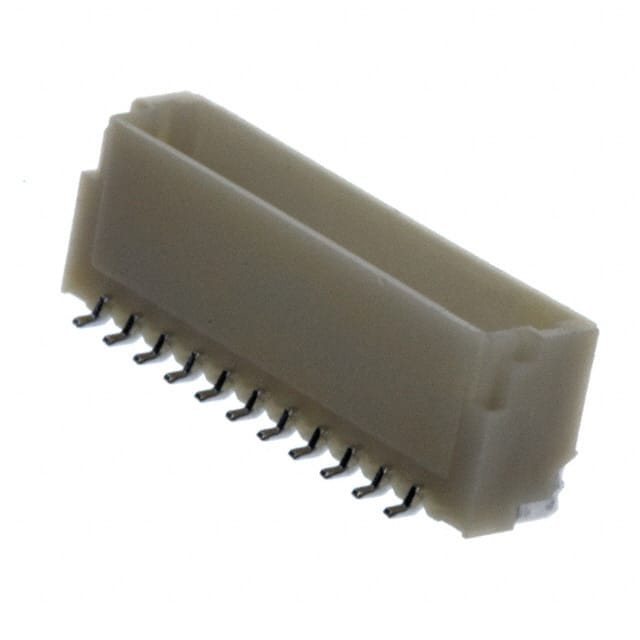

The JST BM11B-SRSS-TB(LF)(SN) is a 11-position, 1-row shrouded header designed for board-to-cable/wire applications. It features a 1.00mm pitch and surface mount termination with solder retention for reliable mechanical attachment. The contacts are made of tin-plated copper alloy with a square shape, ensuring good conductivity and durability. The insulation is natural nylon (Polyamide) with a UL94 V-0 flammability rating, providing safety in compact assemblies. The header is shrouded on all four sides with a push-pull fastening type, offering secure mating. With a current rating of 1A per contact and a voltage rating of 50V, it is suitable for low-power signal and power connections. The operating temperature range of -25°C to 85°C allows use in various environmental conditions. The insulation height is 4.25mm, making it a low-profile option for space-constrained designs.
11 positions.
1.00mm.
1A.
50V.
Surface Mount.
-25°C to 85°C.
Tin.
