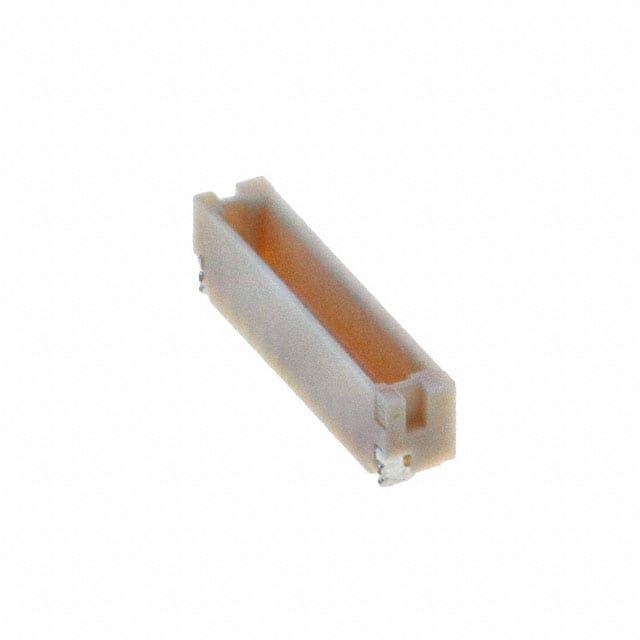

BM10B-SURS-TF(LF)(SN) BM10B-SURS-TF(LF)(SN) is a 10-position, single-row shrouded header connector with 0.8mm pitch, designed for board-to-cable/wire connections. It features surface mount termination and tin-plated contacts.
Mfr Part #:

BM10B-SURS-TF(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
BM10B-SURS-TF(LF)(SN) is a 10-position, single-row shrouded header connector with 0.8mm pitch, designed for board-to-cable/wire connections. It features surface mount termination and tin-plated contacts.
✓ Total Stock: 68,986 pcs

BM10B-SURS-TF(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
68,986 pcs
On Request
68986 pcs On Request 1 On Request On Request 17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BM10B-SURS-TF(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Industrial Grade
Insulation Color
Insulation Height
Insulation Material
Insulation Resistance
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Standards
Style
Termination
Voltage Rating
Withstanding Voltage
View Similar Products (0)

BM10B-SURS-TF(LF)(SN) Description

Short technical summary and product information.

The BM10B-SURS-TF(LF)(SN) is a 10-position, single-row shrouded header connector from JST Manufacturing's SUR series. It features a 0.8mm pitch and a 4-wall shrouded design, making it suitable for board-to-cable/wire applications. The connector is surface mount with solder termination and includes solder retention features for reliable mounting.



Electrical specifications include a current rating of 0.5A for AWG #32 wire and 0.2A for AWG #36 wire, with a voltage rating of 30V DC. Contact resistance is 20mΩ initial and 40mΩ after environmental tests, with insulation resistance of 100MΩ minimum. The operating temperature range is -25°C to 85°C.



The header is designed for use with fine wires (AWG #32 and #36) with 7-strand conductors and 0.39mm insulation outer diameter. It is packaged in emboss tape with a standard quantity of 2000 pieces per reel.



The connector is RoHS compliant and recognized under standards E60389 and LR20812. The natural nylon housing has a UL94 V-0 flammability rating.

BM10B-SURS-TF(LF)(SN) Quick Information

Product Type: Shrouded Header Connector
Series: SURS
Canonical Name: BM10B-SURS-TF(LF)(SN) - 10 Position 0.8mm Pitch Shrouded Header, Surface Mount
Subcategory: Headers, Male Pins

BM10B-SURS-TF(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BM10B-SURS-TF(LF)(SN) Features

  • 10-position single-row shrouded header.
  • 0.8mm pitch for compact designs.
  • Surface mount with solder retention.
  • Rated 0.5A at AWG #32 wire.
  • Operating temperature -25°C to 85°C.

BM10B-SURS-TF(LF)(SN) Applications

  • Ideal for wire-to-board connections.
  • Used in compact electronic devices.
  • Suitable for fine wire applications.
  • Common in consumer electronics and industrial equipment.

BM10B-SURS-TF(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the BM10B-SURS-TF(LF)(SN) header have?

10 positions.

What is the pitch of this connector?

0.80mm.

What is the current rating of the BM10B-SURS-TF(LF)(SN)?

0.5A for AWG #32 wire and 0.2A for AWG #36 wire.

What is the voltage rating?

30V DC.

What is the mounting type?

Surface mount.

What is the operating temperature range?

-25°C to 85°C.

What is the contact resistance?

20mΩ initial, 40mΩ after environmental tests.
