| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,100 pcs
|
1100 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Termination Style | |
| Voltage Rating |

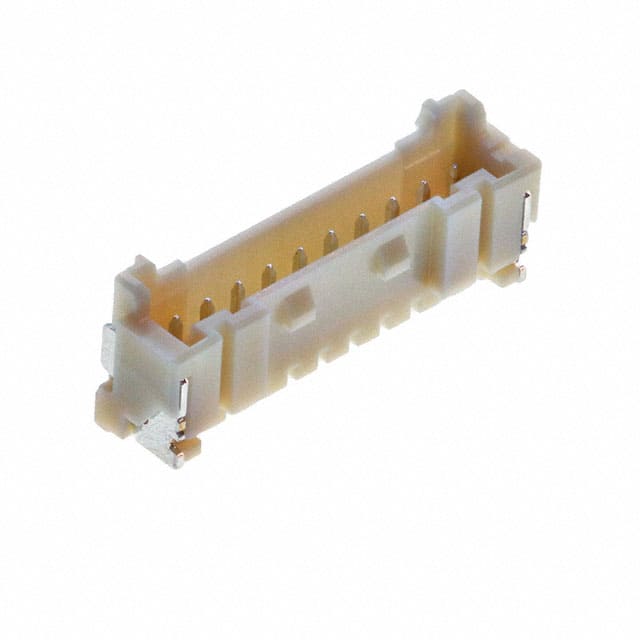

The JST BM10B-PASS-1-TFT(LF)(SN) is a 10-position, single-row, 2.00mm pitch header designed for board-to-cable/wire applications. It features male square pins with tin-plated copper alloy contacts, providing reliable solder termination for surface mount assembly.
The header is shrouded on all four walls and includes a locking ramp for secure mating. It is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The insulator is made of polyamide (PA) nylon in natural color, with a UL94 V-0 flammability rating.
Additional features include a board guide, pick and place capability, and solder retention, making it suitable for automated assembly processes. The insulation height is 8.89mm, and the component is designed for surface mount soldering.
This header has 10 positions, all loaded, in a single row.
The pitch is 2.00mm.
The current rating is 3A.
The voltage rating is 250V.
This header is surface mount with solder termination.
The operating temperature range is -25°C to 85°C.
The insulator is made of polyamide (PA) nylon with a UL94 V-0 flammability rating.
