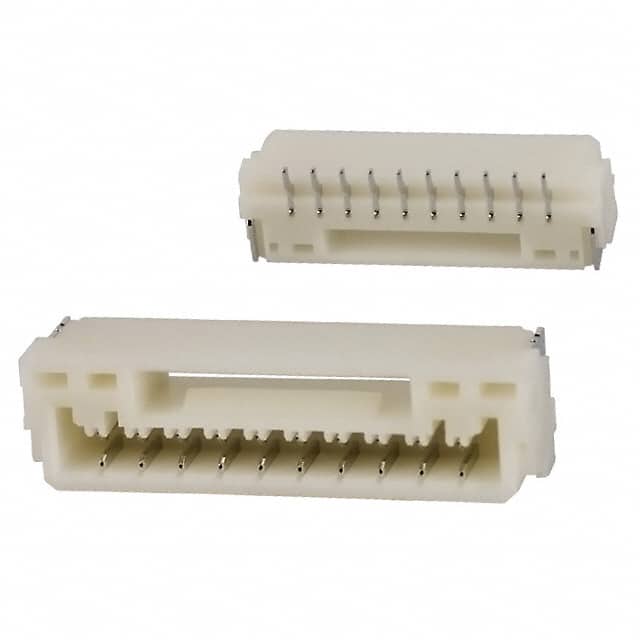

BM10B-GHS-TBT(LF)(SN)(N) The BM10B-GHS-TBT(LF)(SN)(N) is a 10-position, single-row, surface mount header connector with 1.25mm pitch. It features a shrouded 4-wall design, locking ramp, and tin-plated phosphor bronze contacts.
Mfr Part #:

BM10B-GHS-TBT(LF)(SN)(N)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
The BM10B-GHS-TBT(LF)(SN)(N) is a 10-position, single-row, surface mount header connector with 1.25mm pitch. It features a shrouded 4-wall design, locking ramp, and tin-plated phosphor bronze contacts.
✓ Total Stock: 21,572 pcs

BM10B-GHS-TBT(LF)(SN)(N) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
21,572 pcs
On Request
21572 pcs On Request 1 On Request On Request 15+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BM10B-GHS-TBT(LF)(SN)(N) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

BM10B-GHS-TBT(LF)(SN)(N) Description

Short technical summary and product information.

The BM10B-GHS-TBT(LF)(SN)(N) is a 10-position, single-row header connector from JST Manufacturing. It has a pitch of 1.25mm (0.049 inches) and is designed for surface mount (SMD) assembly with solder termination. The connector features a shrouded 4-wall design for contact protection and a locking ramp for secure mating with cable assemblies. The insulation is made of Polyamide (PA9T), Nylon 9T, with a natural color, and has a height of 4.05mm. The contacts are phosphor bronze with tin plating, rectangular in shape. The connector is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. It includes pick and place and solder retention features for automated manufacturing. The material flammability rating is UL94 V-0.

BM10B-GHS-TBT(LF)(SN)(N) Quick Information

Product Type: Header Connector
Series: GH
Canonical Name: JST BM10B-GHS-TBT(LF)(SN)(N) Header, Male Pins, 10 Position, 1.25mm Pitch, Surface Mount, Shrouded
Subcategory: Headers, Male Pins

BM10B-GHS-TBT(LF)(SN)(N) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BM10B-GHS-TBT(LF)(SN)(N) Features

  • 10 positions on 1.25mm pitch.
  • Surface mount with solder termination.
  • Shrouded 4-wall design for protection.
  • Locking ramp for secure connection.
  • Rated for 1A and 50V operation.

BM10B-GHS-TBT(LF)(SN)(N) Applications

  • Used for board-to-wire connections.
  • Suitable for compact electronic devices.
  • Ideal for consumer electronics wiring.
  • Applicable in industrial control systems.

BM10B-GHS-TBT(LF)(SN)(N) FAQs

7 frequently asked questions generated from this part’s specifications.
How many positions does the BM10B-GHS-TBT(LF)(SN)(N) have?

10 positions.

What is the pitch of this header connector?

1.25mm (0.049 inches).

What is the current rating of this connector?

1A.

What is the voltage rating?

50V.

What is the mounting type?

Surface mount (SMD).

What is the operating temperature range?

-25°C to 85°C.

Does the connector include pick and place and solder retention features?

Yes, it includes pick and place and solder retention features.
