| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8,000 pcs
|
8000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Current Rating | |
| Features | |
| Height Above Board | |
| Lead Spacing | |
| Lead Style | |
| Mated Stacking Heights | |
| Mounting Type | |
| Number of Positions | |
| Number of Rows | |
| Operating Temperature Range | |
| Pitch | |
| Solder Retention | |
| Storage Temperature Range | |
| Tape & Reel |

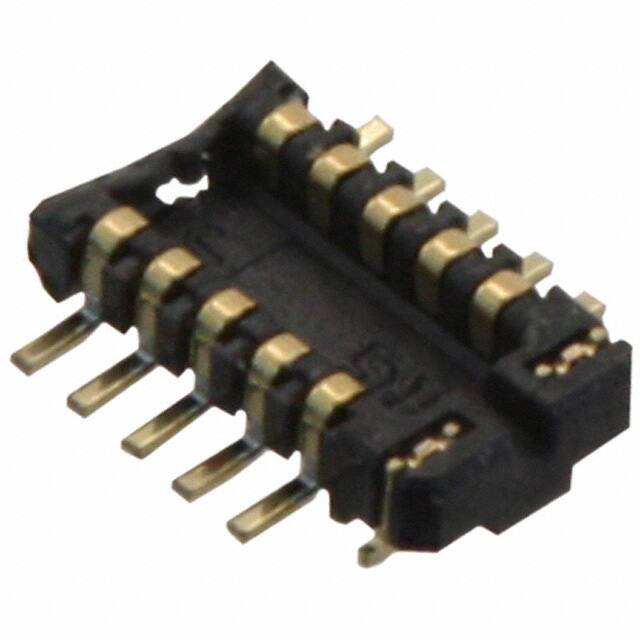

The Hirose BM10B(0.8)-10DP-0.4V(51) is a board-to-board connector from the BM10 series, offering 10 positions arranged in 2 rows with a 0.4mm pitch. This surface mount header features outer shroud contacts and is designed for high-density applications requiring a low mated height of 0.8mm.
Key specifications include a gold contact finish with 2.00µin thickness, a current rating of 0.3A per contact, and an operating temperature range of -35°C to +85°C. The connector includes solder retention features for secure attachment during reflow soldering.
Design features from the datasheet include a 2-point contact configuration for reliable electrical and mechanical connection, self-alignment capability up to 0.3mm, shock-absorbing protrusions, solder wicking prevention via nickel barriers, and contamination protection from insulator walls. These features make it suitable for board-to-board and board-to-FPC interconnects in compact electronic devices.
The connector has a height above board of 0.63mm and is available in tape and reel packaging (DigiKey part numbers H11811TR-ND, H11811CT-ND, H11811DKR-ND).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.59 | $0.59 |
| 10+ | $0.52 | $0.52 |
| 25+ | $0.47 | $0.47 |
| 50+ | $0.44 | $0.44 |
| 100+ | $0.43 | $0.43 |
| 250+ | $0.39 | $0.39 |
| 500+ | $0.37 | $0.37 |
| 1,000+ | $0.30 | $0.30 |
| 2,500+ | $0.28 | $0.28 |
| 8,000+ | $0.30 | $0.30 |
| 16,000+ | $0.29 | $0.29 |
| 24,000+ | $0.28 | $0.28 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
10 positions.
0.4mm.
0.3A.
Surface mount.
-35°C to +85°C.
Gold with 2.00µin thickness.
0.8mm.
