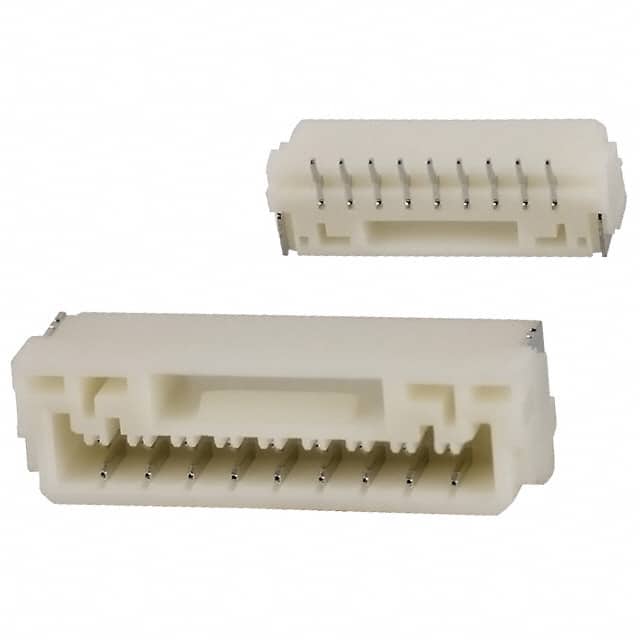

BM09B-GHS-TBT(LF)(SN)(N) JST BM09B-GHS-TBT(LF)(SN)(N) is a 9-position, single-row, surface-mount shrouded header with a 1.25mm pitch, rated for 1A and 50V.
Mfr Part #:

BM09B-GHS-TBT(LF)(SN)(N)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST BM09B-GHS-TBT(LF)(SN)(N) is a 9-position, single-row, surface-mount shrouded header with a 1.25mm pitch, rated for 1A and 50V.
✓ Total Stock: 3,500 pcs

BM09B-GHS-TBT(LF)(SN)(N) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
3,500 pcs
On Request
3500 pcs On Request 1 On Request On Request 15+PB On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BM09B-GHS-TBT(LF)(SN)(N) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Tape & Reel
Termination
Voltage Rating
View Similar Products (0)

BM09B-GHS-TBT(LF)(SN)(N) Description

Short technical summary and product information.

The JST BM09B-GHS-TBT(LF)(SN)(N) is a 9-position, single-row, shrouded header designed for board-to-cable/wire connections. It features a 1.25mm pitch and surface-mount termination with solder retention, making it suitable for automated pick-and-place assembly.



The outer shroud contacts are made of phosphor bronze with a tin finish, and the insulator is natural polyamide (PA9T, Nylon 9T) rated UL94 V-0. The connector includes a locking ramp fastening system for secure mating. Rated for 1A per contact at 50V with an operating temperature range of -25°C to 85°C.

BM09B-GHS-TBT(LF)(SN)(N) Quick Information

Product Type: Header, Male Pins
Series: GH
Canonical Name: JST BM09B-GHS-TBT(LF)(SN)(N) – Shrouded Header, SMT, 9 Positions, 1.25mm Pitch, Tin Contacts
Subcategory: Board-to-Cable/Wire

BM09B-GHS-TBT(LF)(SN)(N) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected
Lead Free: Yes

BM09B-GHS-TBT(LF)(SN)(N) Features

  • 9-position, single-row, 1.25mm pitch header.
  • Surface-mount design with solder retention.
  • Shrouded 4-wall housing with locking ramp.
  • Rated for 1A and 50V operation.
  • UL94 V-0 rated polyamide insulator.

BM09B-GHS-TBT(LF)(SN)(N) Applications

  • Ideal for compact board-to-cable connections.
  • Suitable for automated SMT assembly processes.
  • Used in consumer electronics and small appliances.
  • Works in applications requiring secure locking mating.

BM09B-GHS-TBT(LF)(SN)(N) FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the JST BM09B-GHS-TBT(LF)(SN)(N)?

The pitch is 1.25 mm.

How many positions does this header have?

This header has 9 positions in a single row.

What is the current rating of this connector?

The current rating is 1 A per contact.

What is the voltage rating?

The voltage rating is 50 V.

What mounting type does this header use?

It is a surface-mount (SMT) component with solder termination.

What is the operating temperature range?

The operating temperature range is -25°C to 85°C.

Is this header shrouded?

Yes, it has a shrouded 4-wall design with a locking ramp fastening type.
