| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,264 pcs
|
6264 pcs | On Request | 1 | On Request | On Request | 11+ | On Request | On Request | |
|
445 pcs
|
445 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Type | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

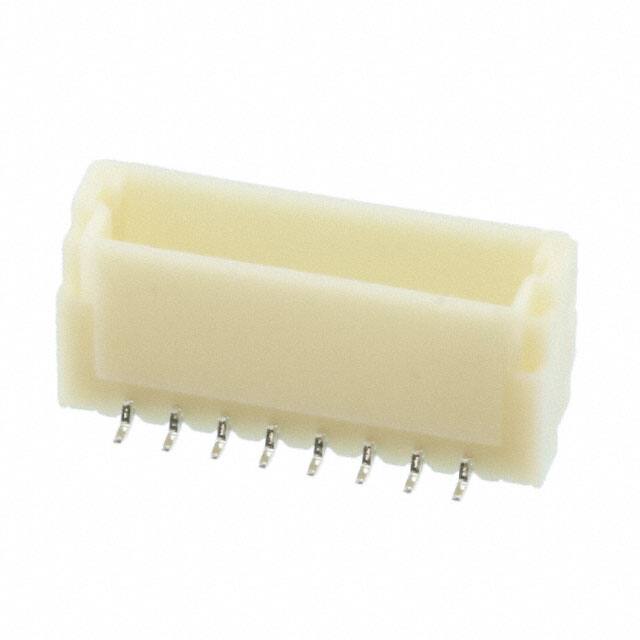

This connector is a 8-position, single row, surface mount header with a 1.00mm pitch, designed for board-to-cable/wire applications. The male pin contacts are made of copper alloy with a tin finish. The housing is a natural polyamide (PA) nylon insulator with a UL94 V-0 flammability rating. The header features a shrouded 4-wall design for improved mating alignment and protection.
Electrical ratings include a current rating of 1A and a voltage rating of 50V. The operating temperature range is -25°C to 85°C. The connector is designed for surface mount soldering and includes pick-and-place and solder retention features for automated assembly. The fastening type is push-pull without locking.
Packaging is available in Tape & Reel (TR) for automated placement. The part is claimed RoHS compliant and REACH unaffected, though these compliance statements are unverified. Moisture sensitivity level is stated as 1 (unlimited).
This header has 8 positions in a single row, all loaded.
The pitch is 1.00mm (0.039 inches).
The current rating is 1A.
The voltage rating is 50V.
The mounting type is Surface Mount (SMD) with solder termination.
The operating temperature range is -25°C to 85°C.
The fastening type is push-pull, non-locking.
