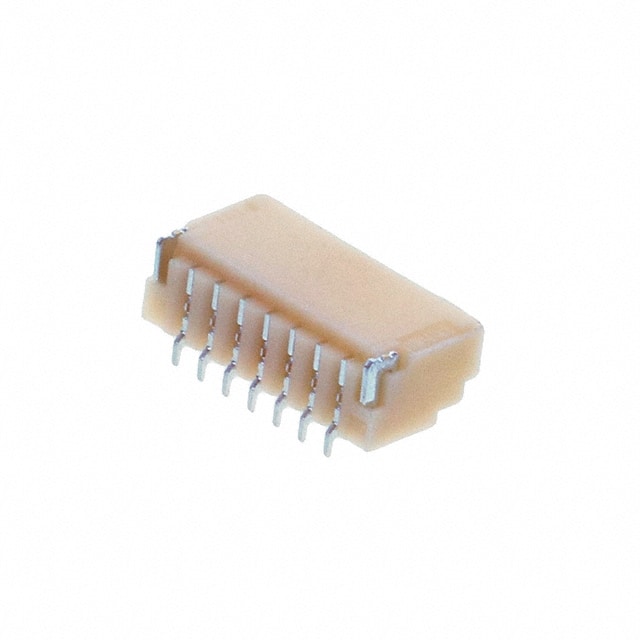

BM07B-SRSS-TBT(LF)(SN) JST Manufacturing BM07B-SRSS-TBT(LF)(SN) is a 7-position, single-row, 1.00mm pitch surface mount header with a shrouded 4-wall design and solder retention.
Mfr Part #:

BM07B-SRSS-TBT(LF)(SN)

Available from 1 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
JST Manufacturing BM07B-SRSS-TBT(LF)(SN) is a 7-position, single-row, 1.00mm pitch surface mount header with a shrouded 4-wall design and solder retention.
✓ Total Stock: 4,000 pcs

BM07B-SRSS-TBT(LF)(SN) Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
4,000 pcs
On Request
4000 pcs On Request 1 On Request On Request 16+17+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BM07B-SRSS-TBT(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
Shrouding
Style
Termination
Termination Style
Voltage Rating
View Similar Products (0)

BM07B-SRSS-TBT(LF)(SN) Description

Short technical summary and product information.

The BM07B-SRSS-TBT(LF)(SN) is a 7-position, single-row, shrouded header from JST Manufacturing, featuring a 1.00mm pitch and surface mount termination. This male pin connector is designed for board-to-cable/wire applications and includes pick-and-place and solder retention features for automated assembly. The housing is made of polyamide (nylon) with a natural color, rated UL94 V-0 for flammability. The contacts are copper alloy with a tin finish, rated for 1A current and 50V voltage. The operating temperature range is -25°C to 85°C. With an insulation height of 4.25mm and a push-pull fastening type, this connector is suitable for compact, high-density designs.

BM07B-SRSS-TBT(LF)(SN) Quick Information

Product Type: Header Connector
Series: SRSS
Canonical Name: JST Manufacturing BM07B-SRSS-TBT(LF)(SN) 7 Position 1mm Pitch Shrouded Header
Subcategory: Shrouded Header

BM07B-SRSS-TBT(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BM07B-SRSS-TBT(LF)(SN) Features

  • 7 position single row 1.00mm pitch header.
  • Surface mount with solder retention features.
  • Shrouded 4-wall design for secure mating.
  • Rated for 1A current and 50V voltage.

BM07B-SRSS-TBT(LF)(SN) Applications

  • Board-to-cable/wire interconnects in compact devices.
  • Automated SMD assembly with pick-and-place compatible.
  • Suitable for low-power signal and power connections.

BM07B-SRSS-TBT(LF)(SN) FAQs

5 frequently asked questions generated from this part’s specifications.
How many positions does the BM07B-SRSS-TBT(LF)(SN) have?

7 positions in a single row.

What is the pitch of this header?

1.00mm (0.039 inches).

What is the current rating?

1 ampere.

What is the voltage rating?

50 volts.

What mounting type does this part use?

Surface mount with solder termination.
