| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
485 pcs
|
485 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

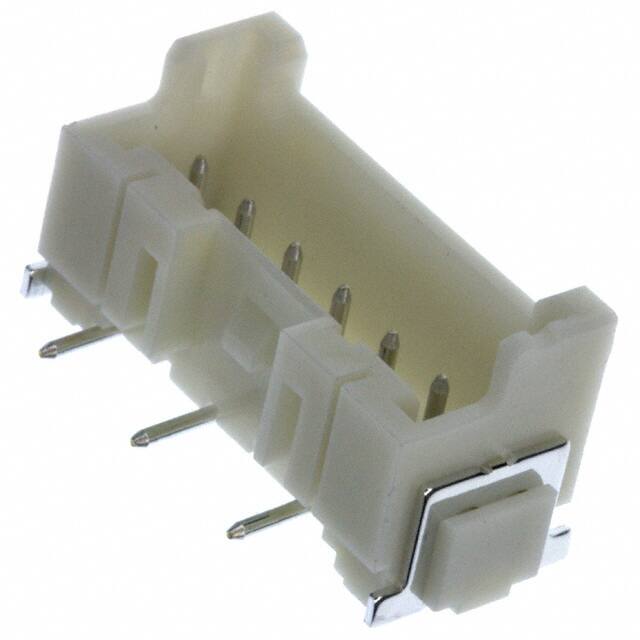

The BM06B-XASS-TF(LF)(SN) is a rectangular connector header from JST Manufacturing, designed for board-to-cable/wire applications. It features 6 positions arranged in a single row with a 2.5mm pitch, making it suitable for compact wire-to-board connections.
The header is shrouded with a 4-wall design and includes a locking ramp for secure mating. The contacts are male pins with a circular shape, made of copper alloy with a tin finish. The insulator is made of polyamide (PA) nylon in a natural color, with an insulation height of 9.40mm.
This component is surface mount with solder termination, and includes solder retention features for reliable PCB attachment. It is rated for 3A current and 250V voltage, and operates within a temperature range of -25°C to 85°C. The material flammability rating is UL94 V-0.
It has 6 positions in a single row.
The pitch is 2.50mm (0.098 inches).
The current rating is 3A.
The voltage rating is 250V.
It is a surface mount component with solder termination.
The operating temperature range is -25°C to 85°C.
The contacts are made of copper alloy with a tin finish.
