| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
5,539 pcs
|
5539 pcs | On Request | 1 | On Request | On Request | 2014+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| SVHC Present | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

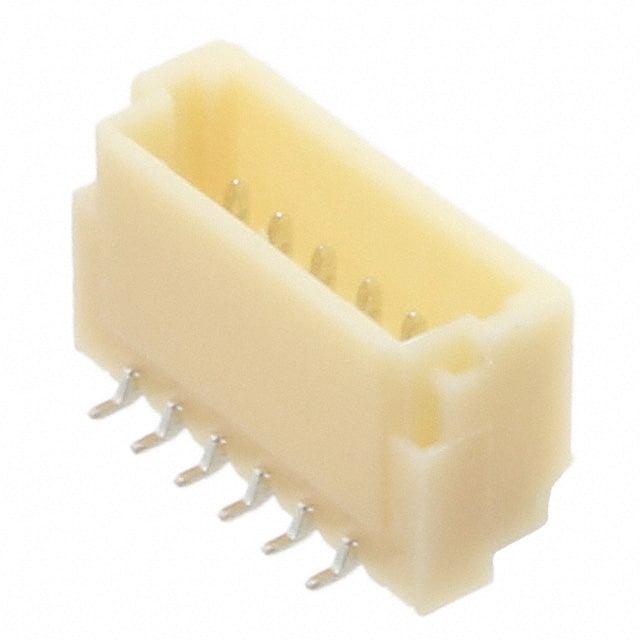

The BM06B-SRSS-TBT(LF)(SN) is a 6-position, single-row shrouded header from JST Manufacturing. It features male square pins with a 1.00mm pitch, designed for board-to-cable/wire applications. The connector is surface mount with solder termination and includes features such as pick and place and solder retention for automated assembly.
The header is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. The insulation is made of polyamide (nylon) with UL94 V-0 flammability rating, and the contacts are copper alloy with tin finish. The shrouded design provides 4-wall protection for reliable mating.
This connector is suitable for compact electronic devices where space is limited. The natural insulation color and push-pull fastening type facilitate easy handling. The MSL level is 1 (unlimited) per unverified data, and RoHS and REACH compliance are indicated but unverified.
6 positions.
1.00mm.
1A.
50V.
Surface mount.
-25°C to 85°C.
Yes, shrouded with 4 walls.
