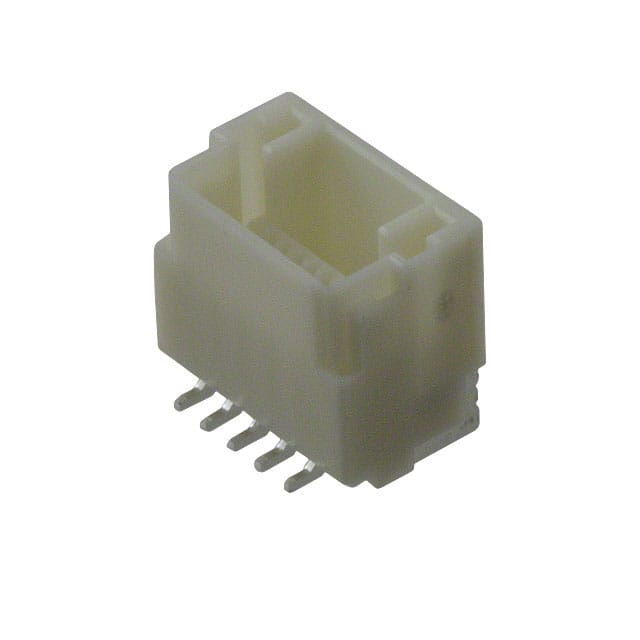

The JST BM05B-NSHSS-TBT(LF)(SN) is a 5-position, single-row, male pin header from the NSH series. It features a 1.00mm pitch and a shrouded 4-wall design with a latch holder fastening system for secure board-to-cable/wire connections.
This connector is rated for 1A (AWG #28) and 50V AC/DC, with a contact resistance of 30 mΩ initial and 50 mΩ after environmental tests. The insulation resistance is 100 MΩ minimum, and it withstands 500 VAC per minute. The operating temperature range is -25°C to 85°C.
The header is surface mount with solder termination and includes features such as a pick and place cap and solder retention for automated assembly. The insulator is natural polyamide (PA) nylon with a UL94 V-0 flammability rating, and the contacts are copper alloy with a tin finish.
It has 5 positions.
The pitch is 1.00mm.
The current rating is 1A (AWG #28).
The voltage rating is 50V.
It is surface mount.
The operating temperature range is -25°C to 85°C.
The insulation material is polyamide (PA) nylon with a UL94 V-0 flammability rating.
