| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | 4 | On Request | 16+NOPB | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Spacing | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Pitch | |
| Shrouding | |
| Style | |
| Termination | |
| Voltage Rating |

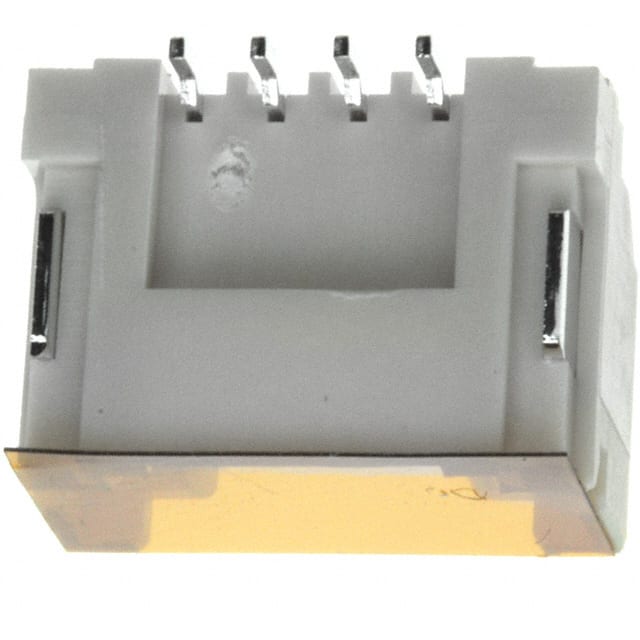

The BM04B-ZESS-TBT(LF)(SN) from JST Manufacturing is a 4-position, single-row shrouded header with a 1.50mm pitch. It is designed for board-to-cable/wire connections and features a surface mount termination with solder retention. The connector is fully shrouded with four walls and includes a locking ramp for secure mating. The insulation is made of polyamide (nylon) in natural color, with a height of 7.50mm. Contacts are made of copper alloy with tin plating, rated for 2A current and 100V voltage. The operating temperature range is -25°C to 85°C. The material flammability rating is UL94 V-0. This header is suitable for automated assembly with pick-and-place features. It is RoHS3 compliant and has an MSL of 1 (unlimited).
It has 4 positions.
The pitch is 1.50mm.
Rated for 2A.
Rated for 100V.
Surface mount.
-25°C to 85°C.
Locking ramp.
