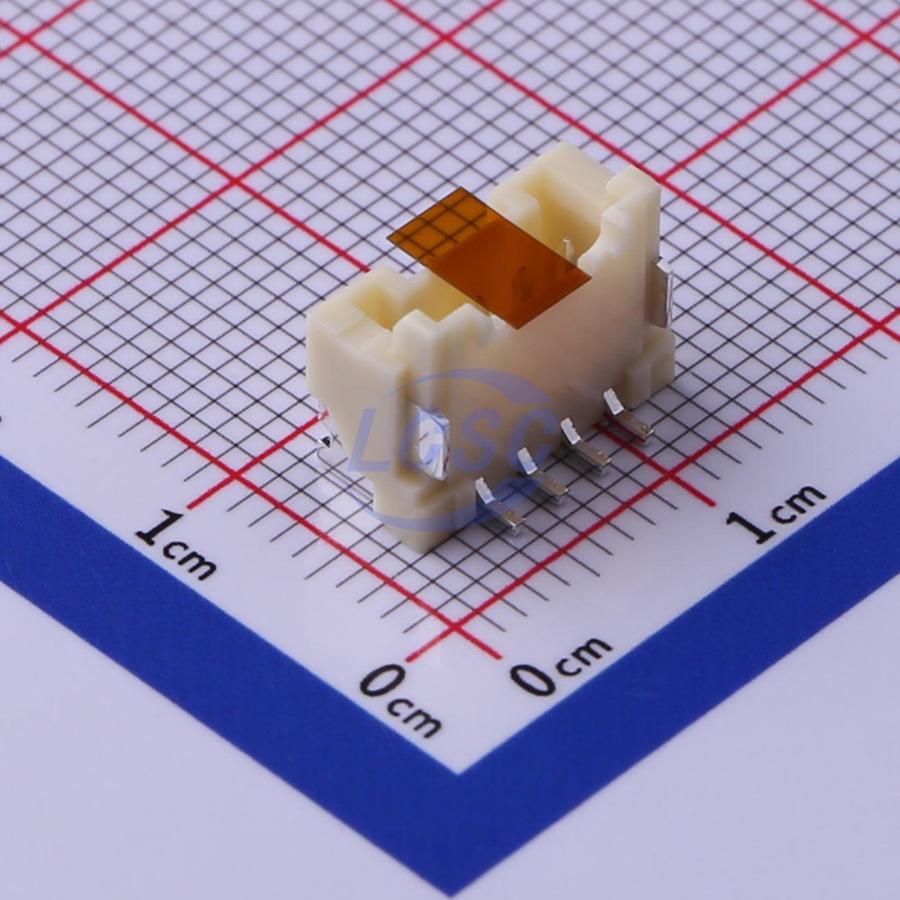

BM04B-PASS-TFT(LF)(SN) Shrouded header connector with 4 positions in a single row, 2mm pitch, surface mount termination. Rated for 3A and 250V.
Mfr Part #:

BM04B-PASS-TFT(LF)(SN)

Available from 3 distributors
Mfr Name: Jst Manufacturing
Jst Manufacturing
Shrouded header connector with 4 positions in a single row, 2mm pitch, surface mount termination. Rated for 3A and 250V.
✓ Total Stock: 11,648 pcs

BM04B-PASS-TFT(LF)(SN) Available from 3 distributors

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Braun Electronic Components ✓
Non-Authorised Inventory information
9,480 pcs
On Request
9480 pcs On Request 1 On Request On Request On Request On Request On Request
Optech Co.,Limited ✓
Non-Authorised Inventory information
2,087 pcs
On Request
2087 pcs On Request 1 4 On Request 11+ On Request On Request
Bristol Electronics ✓
Non-Authorised Inventory information
81 pcs
On Request
81 pcs On Request 1 On Request On Request On Request On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BM04B-PASS-TFT(LF)(SN) Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Connector Type
Contact Finish
Contact Material
Contact Shape
Contact Type
Current Rating
Current Rating (Amps)
Fastening Type
Features
Insulation Color
Insulation Height
Insulation Material
Lead Spacing
Lead Style
Material Flammability Rating
Mounting Type
Number of Positions
Number of Positions Loaded
Number of Rows
Operating Temperature
Pitch
SVHC Present
Shrouding
Style
Termination
Voltage Rating
View Similar Products (0)

BM04B-PASS-TFT(LF)(SN) Description

Short technical summary and product information.

The BM04B-PASS-TFT(LF)(SN) is a shrouded header connector from JST Manufacturing, part of the PASS series. It features 4 male pin contacts arranged in a single row with a 2mm pitch. The connector is designed for board-to-cable/wire applications and utilizes a locking ramp fastening system for secure mating. The housing is made of polyamide (PA) nylon with a UL94 V-0 flammability rating, colored natural, and has an insulation height of 8.89mm. Contacts are copper alloy with a tin finish. The component is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. It includes features for automated assembly such as pick-and-place and solder retention. The connector is surface mount with solder termination and is RoHS3 compliant with MSL 1.

BM04B-PASS-TFT(LF)(SN) Quick Information

Product Type: Header Connector
Series: PASS
Canonical Name: JST Manufacturing BM04B-PASS-TFT(LF)(SN) - 4-Position Shrouded Header, 2mm Pitch, Surface Mount
Subcategory: Shrouded Header

BM04B-PASS-TFT(LF)(SN) Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BM04B-PASS-TFT(LF)(SN) Features

  • 4-position single row shrouded header.
  • 2mm pitch for compact designs.
  • Rated for 3A and 250V operation.
  • Surface mount with solder termination.
  • Locking ramp for secure mating.

BM04B-PASS-TFT(LF)(SN) Applications

  • Board-to-cable wire harness connections.
  • Automated pick-and-place assembly.
  • Requires mating connector with 2mm pitch.
  • Suitable for 3A power and signal lines.

BM04B-PASS-TFT(LF)(SN) FAQs

7 frequently asked questions generated from this part’s specifications.
What is the pitch of the BM04B-PASS-TFT(LF)(SN)?

2.00mm

How many positions does the BM04B-PASS-TFT(LF)(SN) have?

4 positions.

What is the current rating for this header?

3A

What is the voltage rating?

250V

What mounting type does the BM04B-PASS-TFT(LF)(SN) use?

Surface mount.

What is the operating temperature range?

-25°C to 85°C

Is this connector RoHS compliant?

RoHS3 Compliant (unverified, low confidence).
