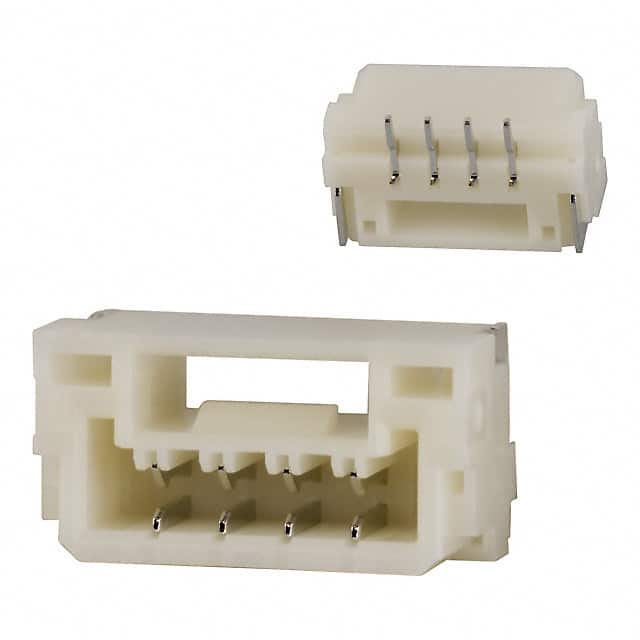

The BM04B-GHS-TBT(LF)(SN)(N) is a shrouded header from JST's GH series, designed for board-to-cable/wire connections. It features 4 positions in a single row with 1.25mm pitch, surface mount solder termination, and tin-plated phosphor bronze contacts. The insulation is natural-colored polyamide (PA9T) with a 4-wall shrouded design and locking ramp for secure mating. The housing height is 4.05mm.
Electrically, the header is rated for 1A current and 50V voltage, with an operating temperature range of -25°C to 85°C. It meets UL94 V-0 flammability requirements. Initial contact resistance is 20mΩ maximum, and insulation resistance is 100MΩ minimum. Withstanding voltage is 500V AC for one minute. The part includes pick-and-place and solder retention features for automated assembly.
This connector is suitable for internal wiring in consumer electronics, automotive, and industrial equipment where a secure locking connection is needed. The applicable wire range is AWG 28 to 24, with conductor sizes of 0.08 to 0.2 mm² and insulation outer diameter of 0.8 to 1.2 mm.
Packaging is inferred as tape and reel (from the TBT suffix). Surface mount packaging enables high-speed assembly. Detailed dimensions and PCB footprint should be obtained from the manufacturer's drawing.
4 positions.
1.25mm (0.049").
1A.
50V.
Surface Mount.
-25°C to 85°C.
Phosphor Bronze with Tin plating.
