| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
85 pcs
|
85 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Flammability Rating | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Pitch | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Voltage Rating |

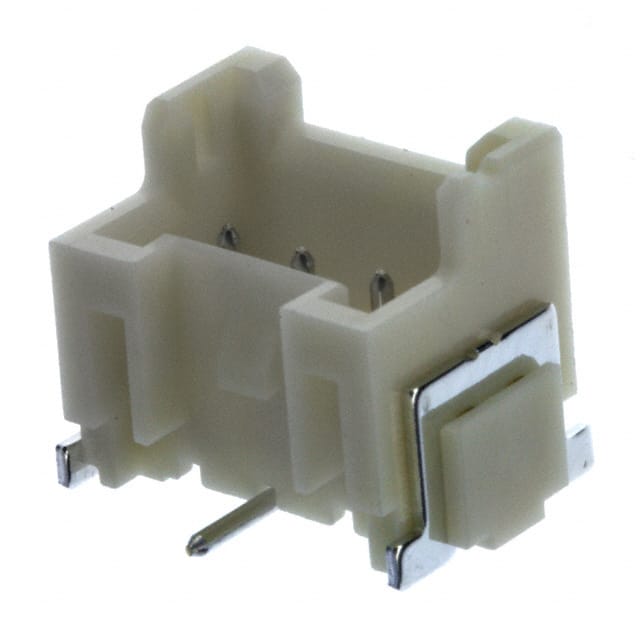

The JST BM03B-XASS-TF(LF)(SN) is a 3-position, single-row surface mount header from the XA series, designed for board-to-cable/wire applications. It features a shrouded 4-wall housing made from natural polyamide (PA) nylon with a UL94 V-0 flammability rating, providing robust insulation and protection.
The header has a 2.50mm pitch and is loaded with 3 male pin contacts made of copper alloy with a tin finish. The surface mount termination includes a solder retention feature for reliable board attachment. It uses a locking ramp fastening type for secure mating.
Electrically, this connector is rated for 3A current and 250V voltage, with an operating temperature range of -25°C to 85°C. The circular contact shape supports consistent electrical performance. The component is RoHS3 compliant and has an MSL of 1 (unlimited) based on provided data.
The pitch is 2.50mm (0.098").
3 positions, all loaded.
Rated for 3A and 250V.
Surface mount with solder termination.
-25°C to 85°C.
RoHS3 Compliant (unverified from existing database).
