| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
12,000 pcs
|
12000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
7,000 pcs
|
7000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
3,101 pcs
|
3101 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,204 pcs
|
2204 pcs | On Request | 1 | On Request | On Request | 1520+ | On Request | On Request | |
|
400 pcs
|
400 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current | |
| Data Rate (Max) | |
| Frequency | |
| Industrial Grade | |
| Lead Spacing | |
| Medical Grade | |
| Memory Size | |
| Military Grade | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Supplier Device Package | |
| Tape & Reel | |
| Type | |
| Voltage |
The STMicroelectronics BLUENRG-MSQTR is an RF transceiver integrated circuit designed for Bluetooth applications. It operates in the 2.4GHz frequency band and supports Bluetooth v4.1 protocol.
Key electrical specifications include a maximum data rate of 1Mbps, a sensitivity of -88dBm, and an output power of 8dBm. The device supports a supply voltage range of 1.7V to 3.6V and features SPI serial interfaces. It has a receiving current range of 7.3mA to 14.5mA and a transmitting current range of 5.8mA to 28.8mA.

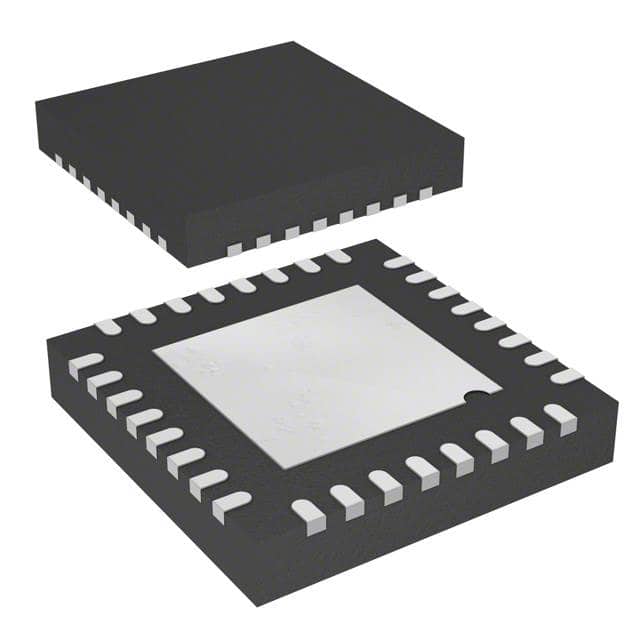

This IC is housed in a 32-VFQFN exposed pad package, suitable for surface mounting. It operates within a temperature range of -40°C to 85°C and includes 64kB Flash memory and 12kB RAM. The modulation type is GFSK.
| Qty | Low | High |
|---|---|---|
| 1+ | $710.26 | $710.26 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The supply voltage range is 1.7V to 3.6V.
It is supplied in a 32-VFQFN exposed pad package.
The operating temperature range is -40°C to 85°C.
The RoHS status is ROHS3 Compliant.
The maximum data rate is 1Mbps.
It supports Bluetooth v4.1 protocol.
