| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Efficiency | |
| Features | |
| Height | |
| Input Frequency | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Power (Watts) | |
| Type | |
| Voltage | |
| Width |

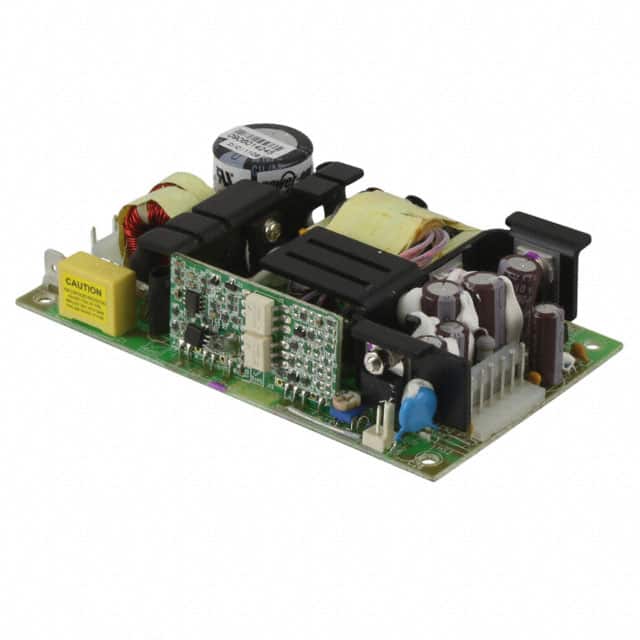

The Bel Power Solutions BLP55-1012G is an open-frame AC/DC converter designed for ITE (Commercial) applications. It provides a single 12V output with a maximum power of 55W.
This converter operates with a wide input voltage range of 85-264 VAC and a frequency of 47-63 Hz. It offers an efficiency of up to 70% at maximum power. Key features include adjustable output, remote sense capability, and internal EMI filtering. The operating temperature range is 0°C to 70°C with derating.
The BLP55-1012G has an industry-standard 3" x 5" footprint, measuring 127.0mm x 76.2mm x 31.2mm. It is designed for chassis mounting. The unit is CE marked to the Low Voltage Directive and complies with EN61000-4 standards.
Available in RoHS3 compliant and lead-solder-exempted versions, this converter is suitable for networking, data communications, and industrial configurations.
The nominal output voltage is 12VDC.
The maximum output power is 55W.
The AC input voltage range is 85-264 VAC.
The operating temperature range is 0°C to 70°C with derating.
The dimensions are 127.0mm x 76.2mm x 31.2mm.
Yes, it is RoHS3 Compliant.
The MSL is 1 Unlimited.
