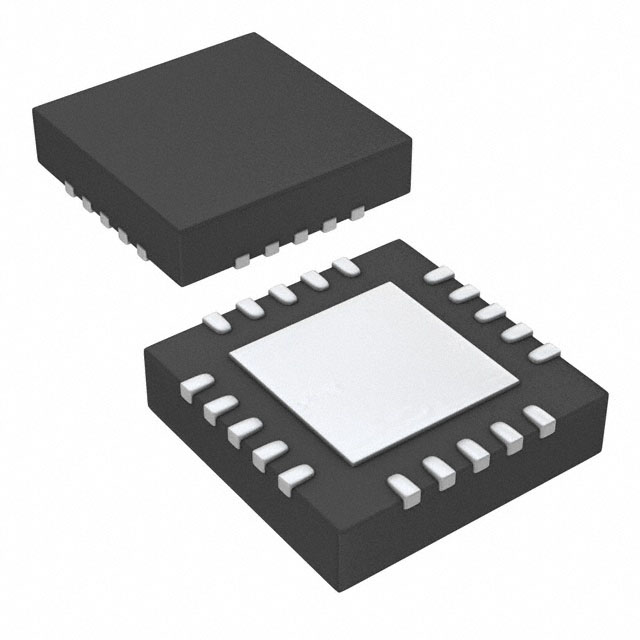

The BLM9D1822-30BZ is a 2-stage integrated Doherty MMIC using Ampleon's GEN9 LDMOS technology. It combines carrier and peaking devices, input splitter, and output combiner in a single 20-QFN Exposed Pad package. Operating from 1.8GHz to 2.2GHz, it delivers 29.3dB gain and 45.9dBm output power at 28V drain voltage. The device features integrated ESD protection, excellent thermal stability, and independent control of carrier and peaking bias. It is designed for RF power applications in multi-carrier GSM, W-CDMA, and LTE base stations. The part is RoHS compliant (unverified) and has an MSL rating of 1 (unlimited) per datasheet, though this is unverified. Mounting is surface mount with supplier device package 20-PQFN (8x8).
| Qty | Low | High |
|---|---|---|
| 1+ | $29.72 | $29.72 |
| 10+ | $24.00 | $24.00 |
| 25+ | $22.57 | $22.57 |
| 100+ | $21.77 | $21.77 |
| 500+ | $19.80 | $19.80 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The drain-source voltage is 28 V.
The device is available in a 20-QFN Exposed Pad package, with supplier device package 20-PQFN (8x8).
The datasheet indicates RoHS compliance, but this is unverified.
The device operates from 1.8 GHz to 2.2 GHz.
The typical gain is 29.3 dB.
The output power is 45.9 dBm.
It is a dual configuration LDMOS, with carrier and peaking devices for Doherty operation.
