| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
15,066,667 pcs
|
15066667 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| AEC Qualified | |
| Automotive Grade | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Medical Grade | |
| Military Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Ratings | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

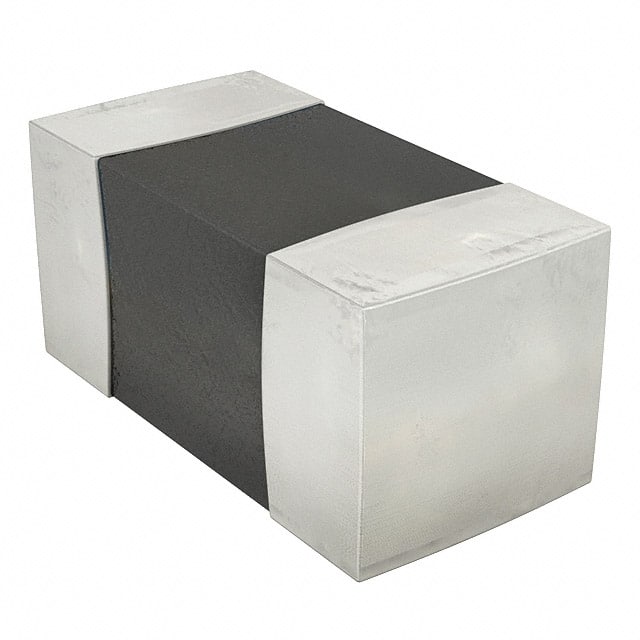

Murata BLM15AG102SH1D is a chip ferrite bead designed for automotive applications, qualified to AEC-Q200. It provides a nominal impedance of 1 kΩ at 100 MHz with ±25% tolerance, effectively suppressing high-frequency noise on signal lines.
The bead features a low DC resistance of 1.0 Ω maximum, allowing a rated current of up to 200 mA at 85°C ambient temperature. It is housed in a compact 0402 (1005 metric) surface-mount package with dimensions 1.00 mm x 0.55 mm x 0.55 mm, suitable for space-constrained designs.
This component operates over a wide temperature range from -55°C to +125°C, ensuring reliability in harsh environments. The ESD rating is 2 kV, providing additional protection.
Packaged in tape and reel (D suffix), it is compatible with automated assembly processes. The single-line configuration is ideal for filtering individual signal or power lines in automotive electronics, such as ECUs, sensors, and infotainment systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.10 | $0.10 |
| 10+ | $0.06 | $0.06 |
| 25+ | $0.05 | $0.05 |
| 100+ | $0.04 | $0.04 |
| 250+ | $0.04 | $0.04 |
| 500+ | $0.03 | $0.03 |
| 1,000+ | $0.03 | $0.03 |
| 5,000+ | $0.02 | $0.02 |
| 10,000+ | $0.02 | $0.02 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The nominal impedance is 1 kΩ at 100 MHz with ±25% tolerance.
The maximum rated current is 200 mA at 85°C ambient temperature.
The component is in a 0402 (1005 metric) surface mount package: 1.00 mm x 0.55 mm x 0.55 mm.
The operating temperature range is -55°C to +125°C.
Yes, it is AEC-Q200 qualified.
Maximum DC resistance is 1.0 Ω initially, and 1.1 Ω after reliability testing.
According to our data, it is marked as RoHS3 compliant, but this has not been verified from the datasheet.
