| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Case Code | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Filter Type | |
| Height (Max) | |
| Impedance @ Frequency | |
| Industrial Grade | |
| Length | |
| Medical Grade | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

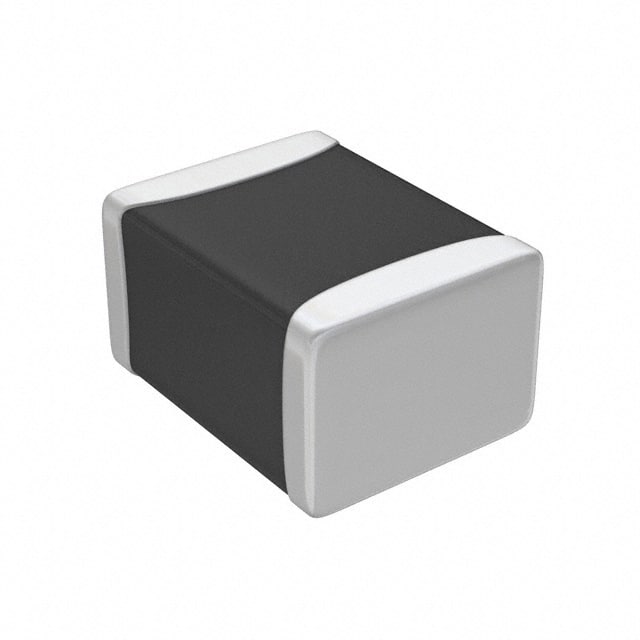

The BLE32PN300SN1L is a surface mount power line ferrite bead from Murata, part of the BLE32PN_SN series. It offers 30Ω impedance at 100MHz with a tolerance of ±10Ω, making it suitable for EMI suppression in power lines.
This ferrite bead features a maximum DC resistance of 1.6mΩ and a high current rating of 10A, allowing efficient power delivery with minimal loss. It operates over a wide temperature range from -55°C to 125°C.
The component is housed in a 1210 (3225 Metric) package with dimensions 3.20mm x 2.50mm and a maximum height of 2.20mm. It is designed for surface mount assembly and is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.06 | $1.06 |
| 10+ | $0.73 | $0.73 |
| 25+ | $0.63 | $0.63 |
| 50+ | $0.56 | $0.56 |
| 100+ | $0.47 | $0.47 |
| 250+ | $0.41 | $0.41 |
| 500+ | $0.38 | $0.38 |
| 1,000+ | $0.32 | $0.32 |
| 1,500+ | $0.32 | $0.32 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The package is 1210 (3225 Metric) with dimensions 3.20mm x 2.50mm and maximum height 2.20mm.
-55°C to 125°C.
It is listed as RoHS3 Compliant.
30 Ω at 100 MHz, with a tolerance of ±10 Ω.
10 A.
Maximum 1.6 mΩ.
Surface Mount.
