| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,238 pcs
|
3238 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,235 pcs
|
1235 pcs | On Request | 1 | On Request | On Request | 18+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

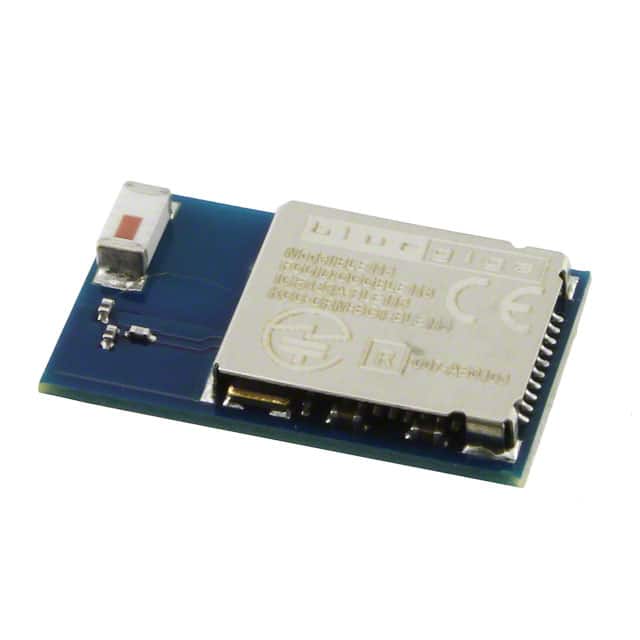

The Silicon Labs BLE113-A-V1 is a surface mount Bluetooth v4.0 module with an integrated chip antenna. It operates in the 2.4 GHz frequency band and supports a data rate of 2 Mbps, making it suitable for various wireless applications.
This module offers a sensitivity of -93 dBm and an output power of 0 dBm, ensuring reliable communication. It is powered by the CC2541 IC and supports serial interfaces including ISP, PWM, SPI, and UART. The operating temperature range is -40°C to +85°C, and it requires an operating voltage between 2V and 3.6V.
The BLE113-A-V1 comes in a module package and is designed for surface mounting. It includes 128kB Flash and 8kB SRAM memory.
This component is ideal for designs requiring low-power Bluetooth connectivity, such as IoT devices, wearables, and wireless sensors.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the BLE113-A-V1 module is between 2V and 3.6V.
The BLE113-A-V1 operates within a temperature range of -40°C to +85°C.
The BLE113-A-V1 module is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) for the BLE113-A-V1 is 1 Unlimited.
The BLE113-A-V1 module supports a data rate of 2 Mbps.
The receiver sensitivity of the BLE113-A-V1 is -93 dBm.
The BLE113-A-V1 supports ISP, PWM, SPI, and UART serial interfaces.
