| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,000 pcs
|
2000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
1,619 pcs
|
1619 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
622 pcs
|
622 pcs | On Request | 1 | On Request | On Request | 17+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

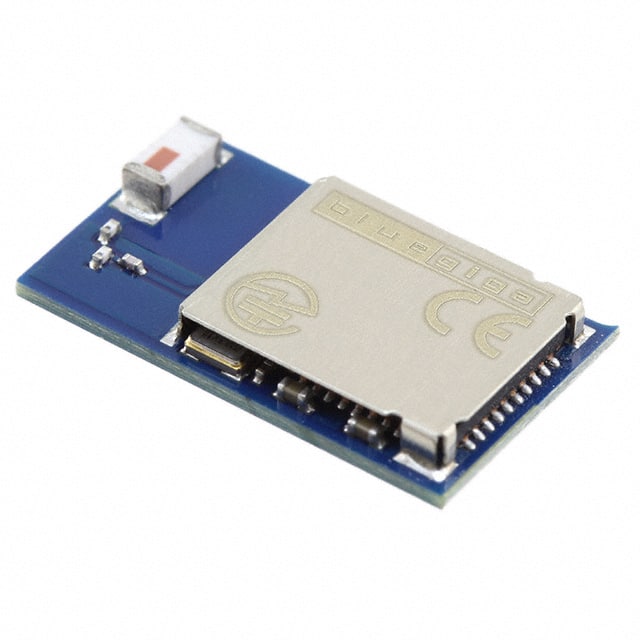

The Silicon Labs BLE113-A-M256K is a compact RF transceiver module supporting Bluetooth 4.0 protocol. It operates in the 2.4GHz frequency band, offering a data rate of up to 2Mbps and a sensitivity of -93dBm. This module is designed for surface mount applications and requires an operating voltage between 2V and 3.6V, consuming approximately 14.3mA of current.
With an integrated chip antenna, the BLE113-A-M256K is suitable for space-constrained designs. It features multiple serial interfaces including ISP, PWM, SPI, and UART, along with 256kB of Flash memory and 8kB of SRAM. The module is rated for operation across a wide temperature range of -40°C to 85°C.
This module utilizes the CC2541 integrated circuit and is presented in a module package. Its RoHS 3 compliance status is noted, along with an MSL rating of 1 and REACH unaffected status, though these compliance details are unverified.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for the BLE113-A-M256K is between 2V and 3.6V.
The BLE113-A-M256K operates in a temperature range of -40°C to 85°C.
This module supports the Bluetooth v4.0 protocol.
The data rate for this module is 2Mbps.
The sensitivity of the BLE113-A-M256K is -93dBm.
The BLE113-A-M256K features an integrated chip antenna.
