| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Capacitance | |
| Case Material | |
| Dielectric Material | |
| ESL (Equivalent Series Inductance) | |
| ESR (Equivalent Series Resistance) | |
| Height | |
| Insulation Resistance | |
| Lead Spacing | |
| Lead Style | |
| Length | |
| Life Test | |
| Mounting Type | |
| Operating Temperature | |
| Package Style | |
| Peak Current | |
| Reference Standards | |
| Resin Material | |
| Terminal Material | |
| Termination | |
| Test Voltage (between terminals) | |
| Test Voltage Between Terminals and Case | |
| Tolerance | |
| Voltage Rating | |
| Weight | |
| Width | |
| dv/dt | |
| ripple_current (Typical @ 10 kHz, TA=25 °C) | |
| ripple_current (Typical @ 10 kHz, TA=55 °C) | |
| ripple_current (Typical @ 10 kHz, TA=75 °C) | |
| thermal_resistance (Typical @ Case to Ambient) | |
| thermal_resistance (Typical @ Case to Case) |

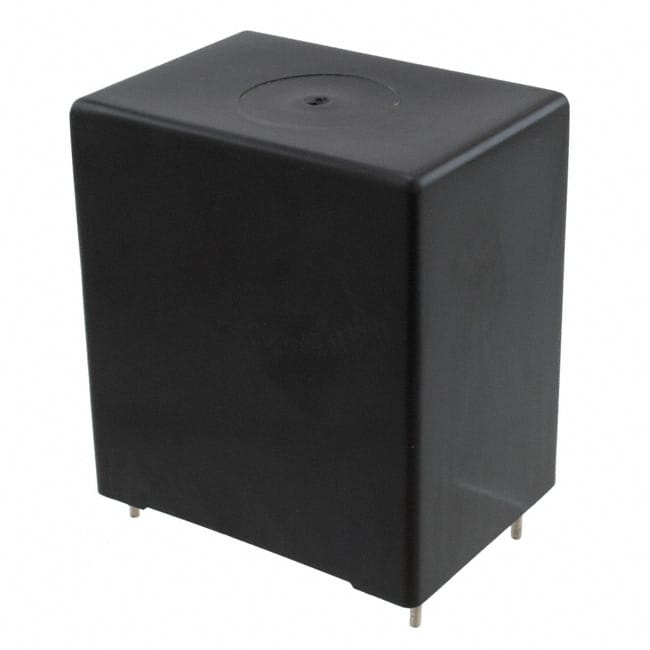

The Cornell Dubilier BLC120J112B4D is a 12 µF, 1100V DC link film capacitor from the BLC series. It features a metallized polypropylene dielectric and is designed for high reliability in DC link and DC filtering applications.
Key electrical specifications include a capacitance tolerance of ±5%, an equivalent series resistance (ESR) of 4.3 mΩ, and a typical ripple current capability of 25 A at 10 kHz and 25°C. The capacitor offers a peak current rating of 230 A and a dV/dt of 19.2 V/µs.
The component is housed in a radial package with 4 PC pin leads and a lead spacing of 37.50 mm. The case is made of UL94V-0 rated plastic, and the resin material is also UL94V-0 rated. The operating temperature range is -45°C to 85°C.
| Qty | Low | High |
|---|---|---|
| 100+ | $12.60 | $12.60 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The capacitance is 12 µF with a tolerance of ±5%.
The rated DC voltage is 1100V.
The dielectric material is metallized polypropylene (PP).
The operating temperature range is -45°C to 85°C.
The package style is radial with 4 leads, and the mounting type is through hole.
The typical ESR is 4.3 mΩ.
The typical ripple current at 10 kHz and 25°C is 25 A.
