| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Body Material | |
| Contact Finish | |
| Contact Material | |
| Current Rating | |
| Current Rating (Amps) | |
| Flammability Rating | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage | |
| Voltage Rating AC |

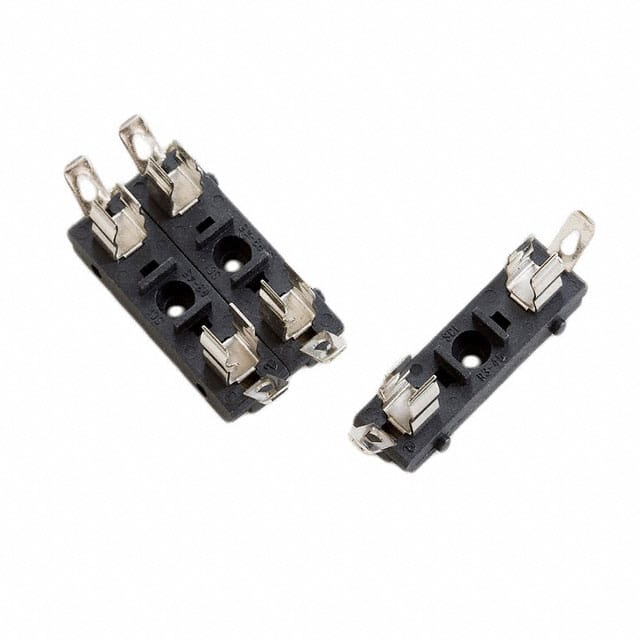

The OptiFuse BLC-20A is a single-pole chassis mount fuse block designed for 1/4" x 1-1/4" (6.35mm x 32mm) cartridge fuses. The body is molded from PBT material with a UL94V-0 flammability rating, and the contacts are nickel plated brass for reliable conductivity.
Electrical ratings: 10A continuous at 250VAC, and 15A at 125VAC. Termination is via quick connect tabs measuring 0.187" (4.7mm). Multiple BLC-20A blocks can be snapped together to create multi-pole fuse holders.
Mounting is chassis mount with screws, and the block accepts fuses in both horizontal and vertical orientations. The unit is a single circuit design.
Compliance includes RoHS3, REACH unaffected, and MSL level 1. Note: compliance statements are unverified as no supporting documents are available.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.21 | $3.21 |
| 10+ | $2.99 | $2.99 |
| 50+ | $2.68 | $2.68 |
| 100+ | $2.49 | $2.49 |
| 250+ | $2.21 | $2.21 |
| 500+ | $1.84 | $1.84 |
| 1,000+ | $1.75 | $1.75 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BLC-20A is rated 10A continuous at 250VAC, and 15A at 125VAC.
The voltage rating is 250VAC maximum.
It accepts 1/4" x 1-1/4" (6.35mm x 32mm) cartridge fuses.
It is a chassis mount fuse block.
It uses quick connect terminals sized 0.187" (4.7mm).
It is a single circuit block, but multiple blocks can be snapped together for multi-pole applications.
The body is made of PBT with a UL94V-0 flammability rating.
