| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Dimensions | |
| Fuse Type | |
| Insulation Resistance | |
| Operating Voltage |

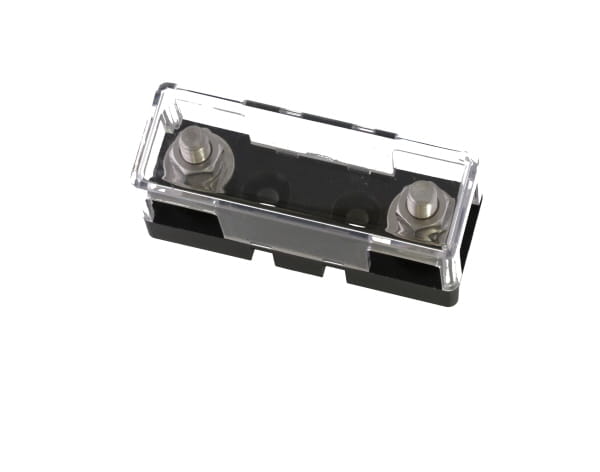

The OptiFuse BLC-09 Fuse Block is engineered to securely mount ANE/ANF limiter fuses, accommodating heavy-duty applications. It is designed to handle significant electrical loads, with a voltage rating of 500VDC and 500VAC.
The maximum current rating varies by model, with options up to 500A available. The fuse block features a durable polyester base and low carbon steel terminals with a zinc finish. It accepts 5/16" (M8) ring terminals for secure connections.
Dimensions for the BLC-09 are approximately 3.46 inches in length, 1.52 inches in height, and 1.22 inches in width. An optional clear polycarbonate cover with wire access is available to provide protection against accidental short circuits. This fuse block is suitable for applications associated with DC battery operated equipment.
UL certification number E40654 is associated with this product line, indicating compliance with relevant safety standards. The BLC-09 is designed for robust performance in demanding environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.88 | $1.88 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BLC-09 fuse block has a voltage rating of 500VDC and 500VAC.
The maximum current rating for the BLC-09 fuse block is up to 500A, depending on the specific model.
The BLC-09 fuse block supports ANE / ANF Limiter Fuses.
The dimensions of the BLC-09 fuse block are 3.46 inches in length, 1.52 inches in height, and 1.22 inches in width.
The base material of the BLC-09 fuse block is Polyester Impact/Electrical.
The UL certification number for the BLC-09 fuse block is E40654.
