| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
10 pcs
|
10 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Contact Finish | |
| Contact Material | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Terminal Type | |
| Termination Style | |
| Torque Rating (Maximum @ fuse mounting) | |
| Torque Rating (Maximum @ mounting) | |
| Voltage | |
| Voltage Rating | |
| Wire size |

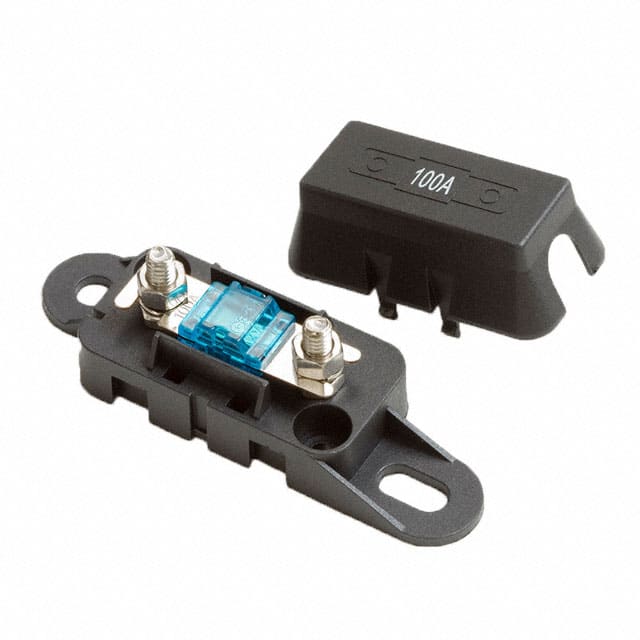

The OptiFuse BLC-06B is a single-circuit fuse block designed for use with MIDI (AMI) bolt-down fuses. It is rated for a maximum voltage of 32V DC and a maximum current of 100A, suitable for a range of automotive and industrial applications. The block accepts wire sizes from #2 to #8 AWG.
Constructed with a black PBT housing and a black Nylon-66 cover, the BLC-06B features nickel-plated steel studs and hex nuts for fuse mounting. The fuse mounting torque is 20 in-lb (2.25 Nm) maximum, and the chassis mounting torque is 44 in-lb (5 Nm) maximum using M6 screws with washers. The block can be oriented horizontally or vertically.
The termination style is bolt down, providing a secure connection for high-current circuits. The fuse block is suitable for use in power distribution systems, battery management, and other applications requiring reliable overcurrent protection. The RoHS and REACH compliance status is unverified; please refer to documentation for confirmation.
| Qty | Low | High |
|---|---|---|
| 1+ | $15.93 | $15.93 |
| 10+ | $13.92 | $13.92 |
| 50+ | $12.92 | $12.92 |
| 100+ | $11.92 | $11.92 |
| 250+ | $11.15 | $11.15 |
| 500+ | $10.34 | $10.34 |
| 1,000+ | $9.55 | $9.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BLC-06B is rated for a maximum voltage of 32V DC.
The maximum current rating is 100A, but the datasheet specifies a range of 30A to 100A.
The BLC-06B is designed for use with MIDI (AMI) bolt-down fuses.
The fuse block is chassis mount with bolt-down termination.
The block accepts wire sizes from #2 to #8 AWG.
The fuse mounting torque is 20 in-lb (2.25 Nm) maximum, and the chassis mounting torque is 44 in-lb (5 Nm) maximum using M6 screws.
The BLC-06B is a single-circuit fuse block.
