| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,400 pcs
|
1400 pcs | On Request | 1 | On Request | On Request | 605 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish (Mating Area) | |
| Contact Finish - Termination | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Features | |
| Halogen Free | |
| Insertion Depth | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Mated Height | |
| Material Flammability Rating | |
| Max Cycles | |
| Mounting Type | |
| Normal Force | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Packaging Type | |
| Penta Octa | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| Shrouding | |
| Standard Package Quantity | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

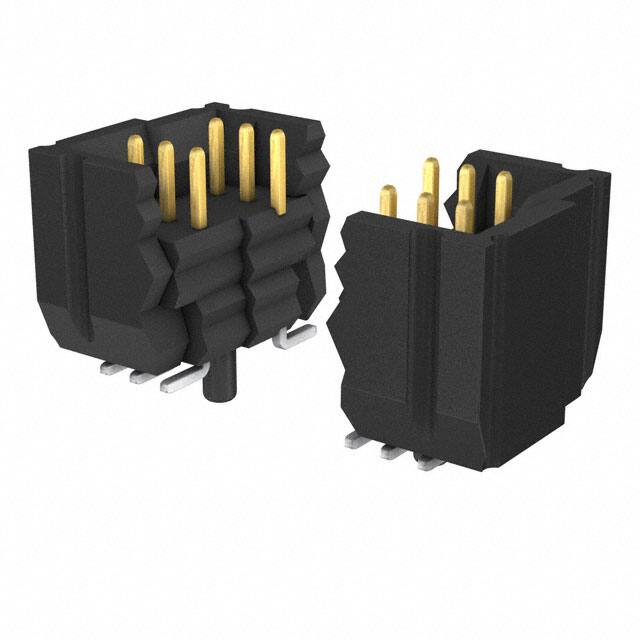

The Samtec BKT-169-04-L-V-S-A-P-TR is a 1.00mm polarized micro terminal strip from the BKT series. It is a 69-position, 2-row surface mount header with male square pins. The connector features a shrouded 4-wall design for polarization and mating with the BKS series socket strip.
Electrical specifications include a current rating of 2.8A per contact (with 2 pins powered) and an operating temperature range of -55°C to 125°C. The insulation is made of Liquid Crystal Polymer (LCP) with a UL94 V-0 flammability rating. The contact finish is 10 µ" Gold on the mating area and Matte Tin on the tail (per -L plating option). The header has a normal force of 40 grams average and is rated for 100 mating cycles.
This header is designed for surface mount soldering and is packaged in tape and reel (350 parts per reel). It includes features like board guide, end shrouds, and a pick-and-place pad for automated assembly. The mated height with the BKS series socket is 6.00mm (lead style -04).
69 positions, all loaded.
1.00mm (0.039")
2.8A per contact (with 2 pins powered).
Surface mount.
-55°C to 125°C.
Liquid Crystal Polymer (LCP) with UL94 V-0 rating.
BKS series 1.00mm Polarized Micro Socket Strip.
