| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
28 pcs
|
28 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Contact Finish | |
| Contact Finish Thickness | |
| Contact Length | |
| Contact Material | |
| Contact Shape | |
| Contact Type | |
| Current Rating | |
| Current Rating (Amps) | |
| Fastening Type | |
| Halogen Free | |
| Insulation Color | |
| Insulation Height | |
| Insulation Material | |
| Lead Style | |
| Material Flammability Rating | |
| Mounting Type | |
| Number of Positions | |
| Number of Positions Loaded | |
| Number of Rows | |
| Operating Temperature | |
| Operating Temperature Range | |
| Packaging Options | |
| Pitch | |
| Prop 65 | |
| Row Spacing | |
| Shrouding | |
| Style | |
| Tape & Reel | |
| Termination | |
| Termination Style |

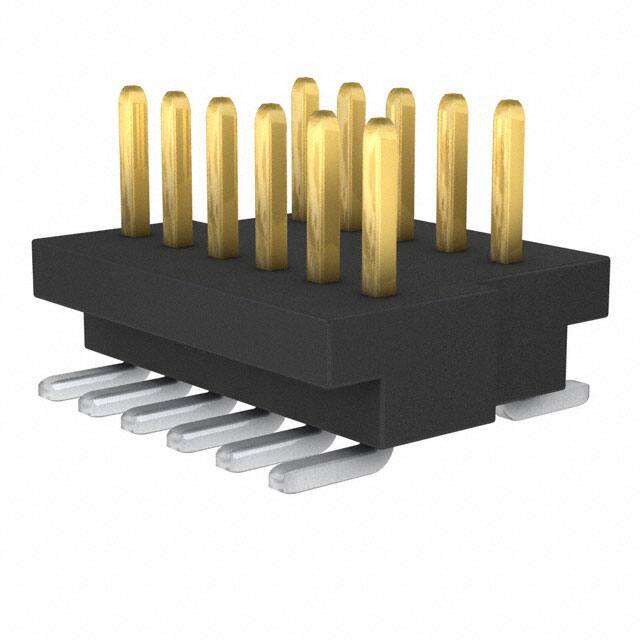

The Samtec BKT-111-01-L-V is a 1.00mm pitch polarized micro terminal strip header designed for board-to-board applications. It features 11 positions arranged in 2 rows with a row spacing of 2.54mm. The connector is unshrouded and uses a push-pull fastening type.
The contacts are made of phosphor bronze with a 10 µ" (0.25 µm) gold finish on the contact area and matte tin on the tails. The insulation is black liquid crystal polymer (LCP) rated UL94 V-0. The header is rated for a typical current of 2.8A per contact (with 2 pins powered) and operates over a temperature range of -55°C to +125°C.
This surface mount header is available in tube (116 pcs) or tape and reel packaging. It mates with the Samtec BKS series socket strips. The part is RoHS3 compliant, REACH unaffected, and halogen free.
The pitch is 1.00mm (0.039").
It has 11 positions in 2 rows.
The typical current rating is 2.8A per contact (with 2 pins powered).
It is surface mount with solder termination.
The operating temperature range is -55°C to +125°C.
