| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
4,000 pcs
|
4000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Halogen Free | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| SVHC Present | |
| Storage Temperature | |
| Tape & Reel | |
| Width |

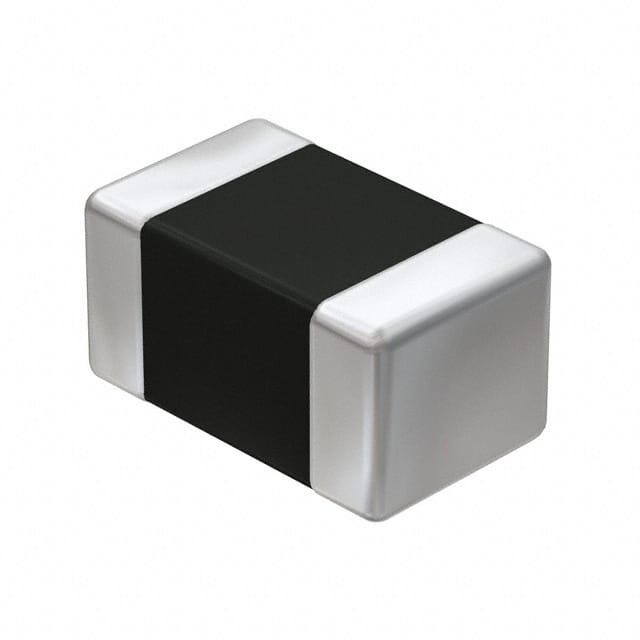

The BK2125HM102-T is a surface-mount ferrite bead from Taiyo Yuden designed for high-frequency noise suppression. It offers a nominal impedance of 1 kΩ at 100 MHz, providing effective attenuation of EMI in signal and power lines.
With a maximum DC resistance of 350mΩ and a current rating of 400mA, this ferrite bead is suitable for low-power circuits. It operates over a temperature range of -55°C to 125°C, ensuring reliability in harsh environments.
Housed in an 0805 (2012 metric) package, the component measures 2.00mm x 1.25mm with a maximum height of 1.05mm. Its single-line configuration and compact footprint make it ideal for space-constrained PCB designs.
1 kΩ at 100 MHz.
350 mΩ.
400 mA.
-55°C to 125°C.
0805 (2012 Metric) surface mount.
According to the product data, it is listed as RoHS3 compliant, though this status is unverified.
