| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
80,000 pcs
|
80000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Max) | |
| DC Resistance (DCR) (Max) | |
| Height (Max) | |
| Impedance @ Frequency | |
| Length | |
| Mounting Type | |
| Number of Lines | |
| Operating Temperature | |
| Width |

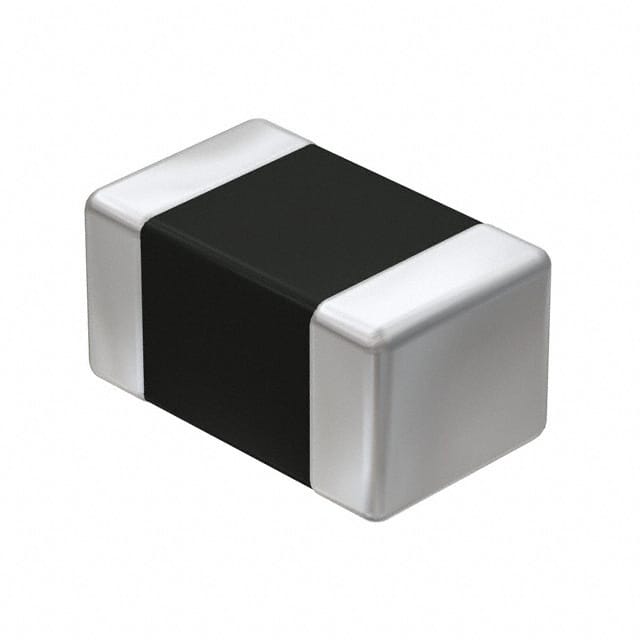

The Taiyo Yuden BK1608HS330-T is a single-line ferrite bead designed for EMI suppression and signal integrity in high-frequency circuits. It presents a nominal impedance of 33 Ω at 100 MHz and can handle a continuous current rating of 1.2 A. The maximum DC resistance is 80 mΩ, minimizing power loss in the circuit.
This ferrite bead is housed in a standard 0603 (1608 metric) surface-mount package and is suitable for automated assembly. It measures 1.60 mm in length, 0.80 mm in width, and has a maximum height of 0.95 mm. The component operates over a wide temperature range from -55°C to 125°C, making it appropriate for environments with thermal extremes.
Common applications include power supply lines, I/O ports, and general-purpose filtering where noise suppression at high frequency is required. The component is RoHS3 compliant and has an MSL rating of 1 (unlimited), indicating no moisture sensitivity restrictions for storage and handling.
The nominal impedance is 33 Ω at 100 MHz.
The maximum current rating is 1.2 A.
The maximum DC resistance is 80 mΩ.
It uses a 0603 (1608 Metric) surface-mount package.
The operating temperature range is -55°C to 125°C.
Yes, it is marked as RoHS3 Compliant, though this is unverified.
The MSL rating is 1 (Unlimited), meaning no moisture sensitivity restrictions.
