| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
13,000 pcs
|
13000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request | |
|
2,700 pcs
|
2700 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating (Amps) | |
| DC Cold Resistance | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Package / Case | |
| Response Time | |
| Typical Voltage Drop | |
| Voltage Rating |

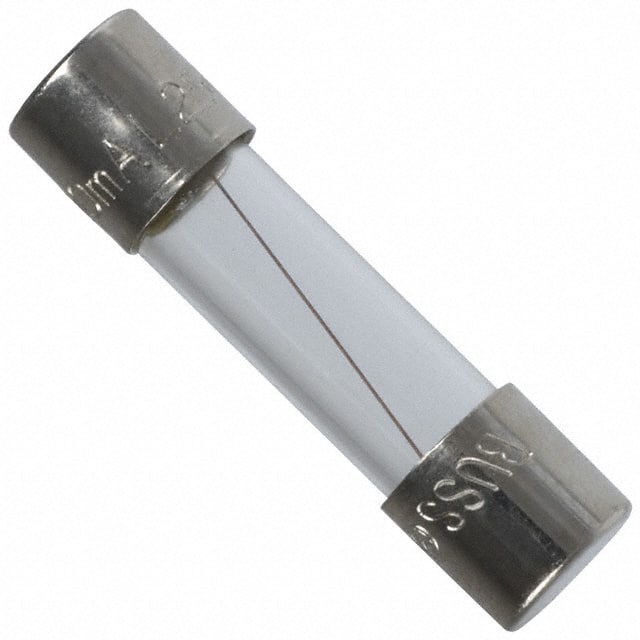

The Eaton BK1/S506-1-R is a 1A, 250VAC time-delay (slow blow) glass cartridge fuse in the industry-standard 5x20mm form factor. This fuse offers a breaking capacity of 35A at rated voltage and a typical melting I²t of 6.45 A²s, making it suitable for applications where temporary inrush currents must be tolerated without nuisance opening.
Electrical characteristics include a typical DC cold resistance of 0.0757 Ω and a typical voltage drop of 87.5 mV at rated current. The fuse is constructed with a glass tube and nickel-plated brass endcaps, with a mounting type that requires a separate fuse holder.
This component carries approvals from multiple international agencies including BSI, CCC, CSA, cURus, IMQ, PSE/JET, SEMKO, and VDE, indicating broad compliance for worldwide use. It is designed in accordance with IEC 60127-2/3 standards.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.27 | $1.27 |
| 5+ | $1.05 | $1.05 |
| 10+ | $0.97 | $0.97 |
| 50+ | $0.81 | $0.81 |
| 100+ | $0.74 | $0.74 |
| 250+ | $0.67 | $0.67 |
| 500+ | $0.62 | $0.62 |
| 1,000+ | $0.57 | $0.57 |
| 5,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fuse is rated for 1 A continuous current.
The voltage rating is 250 VAC.
The breaking capacity is 35 A at the rated voltage.
This is a slow blow (time-delay) fuse.
The fuse is in a standard 5mm x 20mm cartridge package.
