| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| Current Rating | |
| Current Rating (Amps) | |
| Fuse Type | |
| Height | |
| Lead Style | |
| Length | |
| Melting I²t | |
| Mounting Type | |
| Response Time | |
| Voltage Rating | |
| Width |

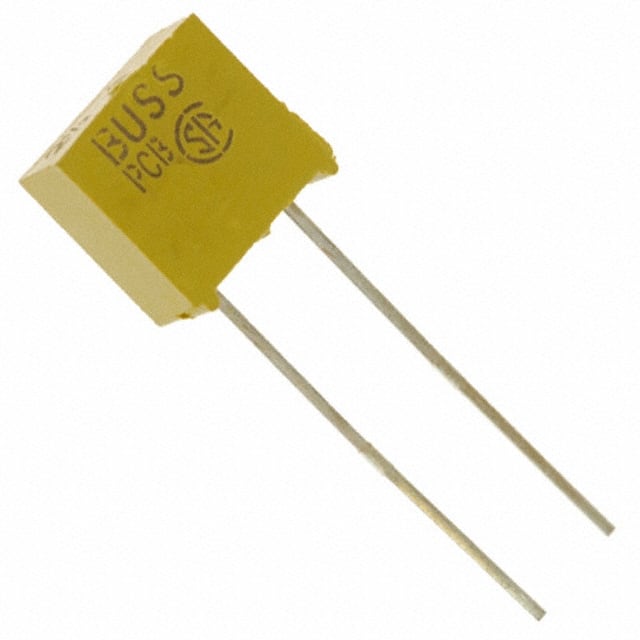

The Eaton BK/PCE-5 is a board mount fuse designed for overcurrent protection in electronic circuits. It is rated for 5A continuous current and can interrupt faults up to 10kA AC at 125VAC and 4.2kA DC at 400VDC. The fuse features a fast blow response time, making it suitable for protecting sensitive components that cannot tolerate even brief overcurrents.
With a melting I²t of 5 A²s, the BK/PCE-5 provides predictable coordination with downstream components. It is housed in a compact radial box package measuring 7.62mm x 2.41mm x 4.32mm, suitable for through hole mounting on printed circuit boards. The fuse is approved by CSA and UL, ensuring compliance with North American safety standards.
This fuse is commonly used in power supplies, industrial controls, and consumer electronics where reliable overcurrent protection is required. Its fast blow characteristic ensures rapid disconnection during short circuits, minimizing damage to the circuit.
The BK/PCE-5 is rated for 5A continuous current.
It is rated for 125VAC and 400VDC.
The breaking capacity is 10kA AC and 4.2kA DC at rated voltage.
It is a fast blow fuse.
It comes in a through hole radial box package measuring 7.62mm x 2.41mm x 4.32mm.
