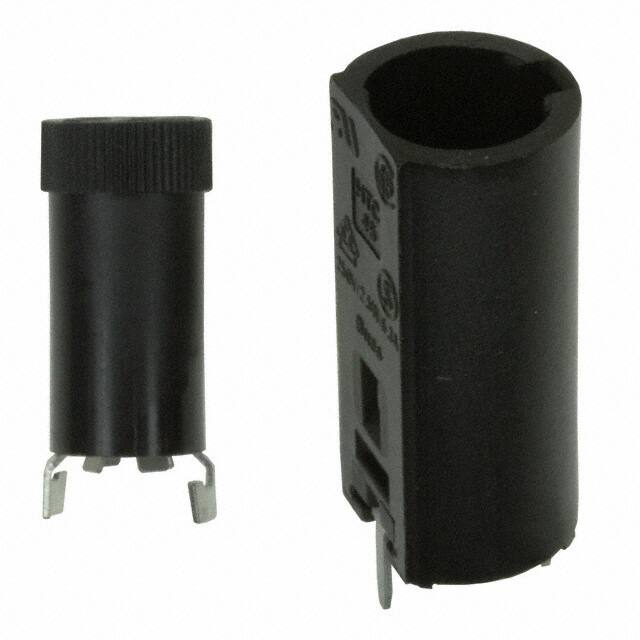

This is a cartridge fuse holder from Eaton's HTC series, designed for 5mm x 20mm fuses. It is rated for 10A continuous current at 250V AC/DC, with a power dissipation rating of 2.5W. The holder features a single circuit and through hole mounting with PC pin terminals in a vertical orientation, making it suitable for compact PCB layouts.
The contact material is tin-plated brass, providing reliable conductivity and corrosion resistance. The operating temperature range is -30°C to +85°C, fitting a wide range of environments. This holder is intended for use in circuit protection applications where a PCB-mounted, solderable fuse holder is required.
Design considerations include the vertical orientation which saves board space, and the PC pin termination for secure soldering. The holder accommodates standard 5x20mm cartridge fuses, commonly used in overcurrent protection for power supplies, industrial controls, and consumer electronics.
| Qty | Low | High |
|---|---|---|
| 100+ | $7.69 | $7.69 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The fuse holder is rated for 10A continuous current.
The voltage rating is 250V.
It accepts 5mm x 20mm cartridge fuses.
The mounting type is through hole with PC pin termination.
The holder is oriented vertically on the PCB.
The operating temperature range is -30°C to +85°C.
The power dissipation rating is 2.5W.
