| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,400 pcs
|
2400 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Diameter | |
| Fuse Length | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage |

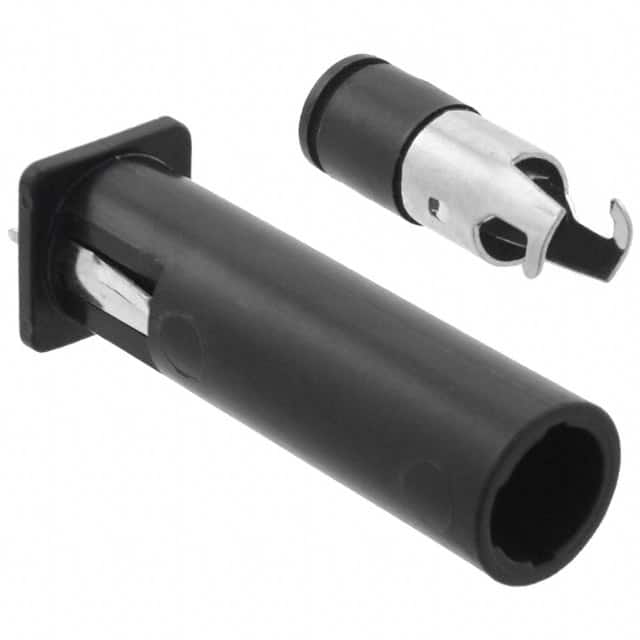

The Eaton BK/HBW-I-R is a single-circuit cartridge fuseholder designed for through hole PCB mounting. It accepts standard 3AG (1/4" x 1-1/4") cartridge fuses, with a fuse size of 6.35mm diameter by 32mm length. The holder is rated for 16A continuous current at 250V AC/DC.
Termination is via PC pins, and the mounting orientation is vertical, allowing for space-efficient placement on the PCB. The fuseholder type is a holder (not a block or clip), providing secure retention of the cartridge fuse. It is intended for use with SFE-20 compatible fuses as well.
Compliance includes RoHS3 (unverified) and REACH unaffected (unverified). Moisture sensitivity level is MSL 1 (unlimited). This component is suitable for overcurrent protection in a variety of electronic and electrical equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $21.86 | $21.86 |
| 5+ | $18.13 | $18.13 |
| 10+ | $16.73 | $16.73 |
| 50+ | $13.86 | $13.86 |
| 100+ | $12.78 | $12.78 |
| 300+ | $11.22 | $11.22 |
| 500+ | $10.55 | $10.55 |
| 1,000+ | $9.73 | $9.73 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BK/HBW-I-R is rated for 16A continuous current.
The BK/HBW-I-R is rated for 250V AC/DC.
It accepts 3AG (1/4" x 1-1/4") cartridge fuses, measuring 6.35mm diameter by 32mm length.
The mounting type is through hole.
The termination style is PC pin.
It is listed as RoHS3 compliant, but this status is unverified.
The MSL rating is 1 (unlimited), but this is unverified.
