BK/HBH-I-R
Eaton - Electronics Division

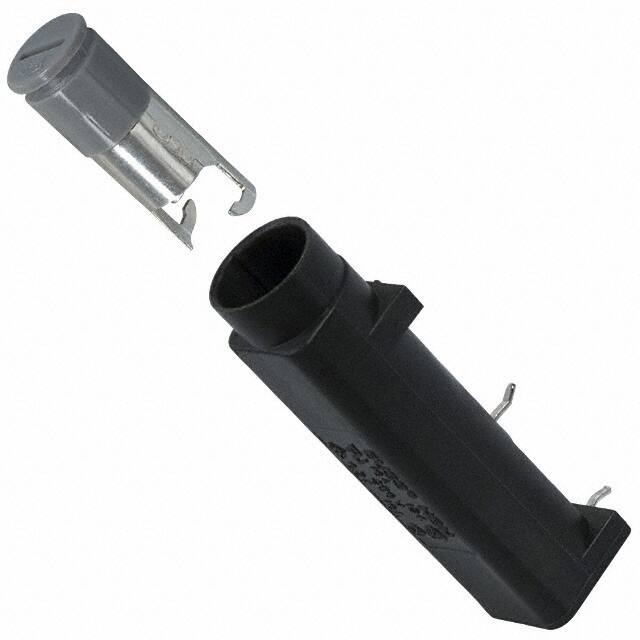

Eaton BK/HBH-I-R is a through-hole cartridge fuseholder rated for 16A at 250V, accepting 3AG (1/4" x 1-1/4") fuses. It features PC pin termination and horizontal orientation.
| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
150 pcs
|
150 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Orientation | |
| Termination Style | |
| Voltage |
The Eaton BK/HBH-I is a single-circuit cartridge fuseholder designed for use with 3AG (1/4" x 1-1/4") fuses. It is rated for 16A at 250V, making it suitable for a range of circuit protection applications in electronic equipment.
This fuseholder features a through hole mounting style with PC pin termination, allowing for secure soldered connections to a printed circuit board. The horizontal orientation of the holder facilitates easy fuse access and replacement in space-constrained designs.
Constructed as a holder-type fuseholder, the BK/HBH-I accepts standard 0.25" diameter by 1.26" long (6.35mm x 32mm) cartridge fuses. Its robust design ensures reliable fuse retention and electrical contact in demanding environments.
| Qty | Low | High |
|---|---|---|
| 100+ | $12.36 | $12.36 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BK/HBH-I is rated for 16 Amps.
The BK/HBH-I is rated for 250 Volts.
The BK/HBH-I accepts 3AG, 1/4" x 1-1/4" (SFE-20) cartridge fuses.
The BK/HBH-I uses through hole mounting with PC pin termination.
The BK/HBH-I is mounted horizontally on the PCB.
