| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
6,100 pcs
|
6100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Approval Agency | |
| Breaking Capacity @ Rated Voltage | |
| BreakingCapacity (Nominal @ 125 V AC) | |
| BreakingCapacity (Nominal @ 250 V AC) | |
| Current Rating | |
| Current Rating (Amps) | |
| DC Cold Resistance | |
| Fuse Type | |
| Melting I²t | |
| Mounting Type | |
| Package / Case | |
| Response Time | |
| Termination Style | |
| Voltage Drop | |
| Voltage Rating |

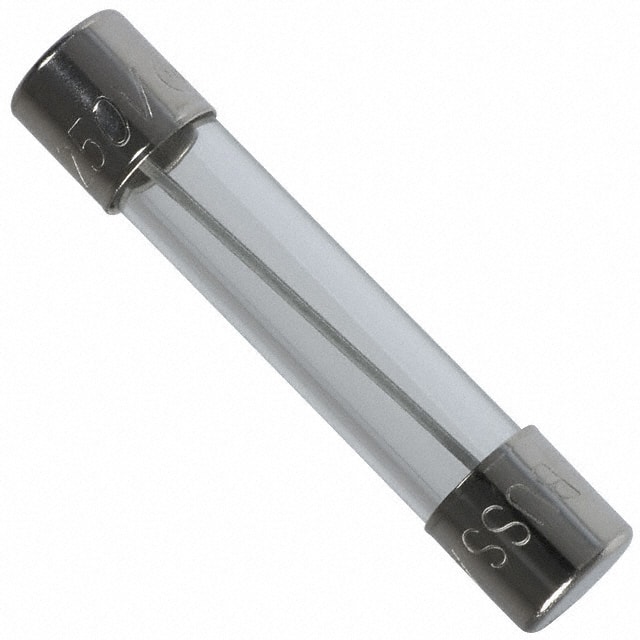

The Eaton AGC-2 is a 2A fast-acting glass tube fuse designed for overcurrent protection in electronic circuits. It is rated for 250V AC and provides a breaking capacity of 100A at 250V AC and 10000A at 125V AC. This fuse features a typical DC cold resistance of 0.078 ohms and a typical melting I²t of 0.00509 A²s. The nominal voltage drop at rated current is 0.28V.
The AGC-2 is housed in a standard 3AB 3AG package measuring 0.250 inches in diameter by 1.250 inches in length (6.35mm x 31.75mm). It requires a holder for mounting and optional axial leads are available. The fuse is UL Listed (card AGC 1/20-10) and CSA Component Acceptance certified.
| Qty | Low | High |
|---|---|---|
| 2,000+ | $0.05 | $0.05 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The current rating is 2 A.
The voltage rating is 250 V AC.
The breaking capacity is 100 A at 250V AC and 10000 A at 125V AC.
The response time is Fast Blow.
The package is 3AB, 3AG, also known as 1/4" x 1-1/4" with dimensions 0.250" Dia x 1.250" L (6.35mm x 31.75mm).
