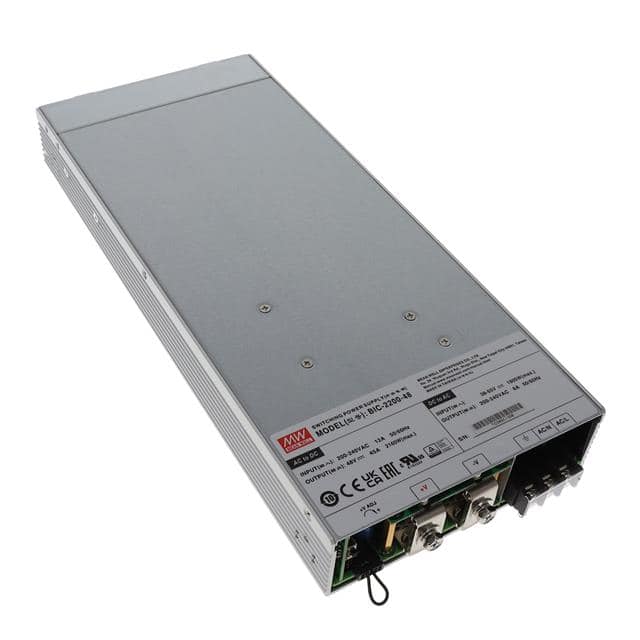

The Mean Well USA BIC-2200-48 is a 2.2 kW bidirectional power supply designed for efficient energy transfer between AC and DC grids. This fully digital, 1U height unit features a 48V output voltage and a rated current of 45A, delivering a total power of 2160W with a high efficiency of 93%.
Designed for applications such as battery formation and testing, V2G systems, charging stations, laser systems, and kinetic recovery systems, the BIC-2200-48 offers advanced functionalities including active current sharing, remote ON/OFF control, and CANBus compatibility. It operates within an input voltage range of 180 to 264 VAC and has an operating temperature range of -30°C to 70°C with derating.
This enclosed power supply is designed for chassis mounting and supports ITE (Commercial) applications. It meets safety standards including CB, CE, cURus, EAC, TUV, UKCA, and UL, with a standard number of 62368-1. The unit also features Power Factor Correction (PFC) and adjustable output.
Key specifications include a compact mechanical design with dimensions of 330.2mm x 139.7mm x 40.9mm. The BIC-2200-48 is suitable for various energy management and conservation solutions.
The output voltage of the BIC-2200-48 is 48V.
The maximum output current for the BIC-2200-48 is 45A.
The power rating of the BIC-2200-48 is 2160W.
The input voltage range for the BIC-2200-48 is 180 to 264 VAC.
The operating temperature range of the BIC-2200-48 is -30°C to 70°C with derating.
The BIC-2200-48 is designed for chassis mounting.
