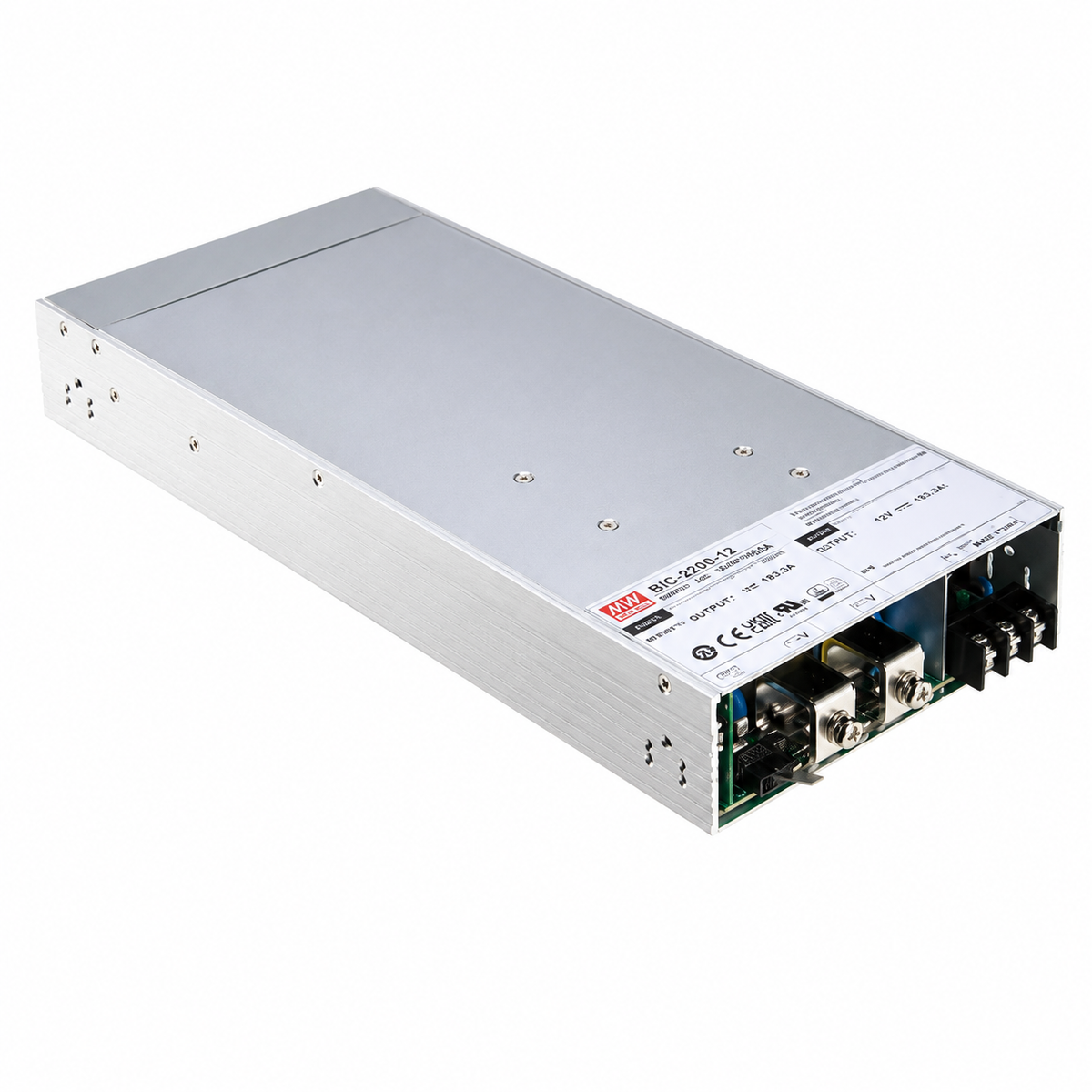

The Mean Well USA BIC-2200-12 is an enclosed AC DC converter designed for ITE (Commercial) applications. It features a 12V output voltage and a high rated current of 180A, delivering a power output of 2200W. This converter operates within an input voltage range of 180 to 264 VAC and boasts a typical efficiency of 90% to 93%.
Key features include a 1U low profile design, full digital control, and ultrafast switching times. It supports active current sharing up to 11000W and has low THDi. The unit is certified to CB/TUV/UL 62368-1 standards and designed in reference to IEC 62477 regulation. Protections include anti-islanding, AC fail, DC OVP, OLP, OCP, and OTP.
With dimensions of 330.2mm x 139.7mm x 40.9mm, it is suitable for chassis mounting. The operating temperature range is -30°C to 70°C with derating. This model comes with a 5-year warranty.
12V
180-264VAC or 255-373VDC
Typical 93%
-30°C to 70°C with derating
Anti-islanding protection, AC fail protection, DC OVP, OLP, OCP, OTP
330.2 x 139.7 x 40.9 mm, 6.39 lbs
UL62368-1, CB, CE, cURus, EAC, TUV, UKCA
