| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
8 pcs
|
8 pcs | On Request | 1 | On Request | On Request | Nov-26 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Battery Cell Size | |
| Battery Series | |
| Battery Type, Function | |
| Height Above Board | |
| Lead Style | |
| Mounting Type | |
| Number of Cells | |
| Style | |
| Termination Style |

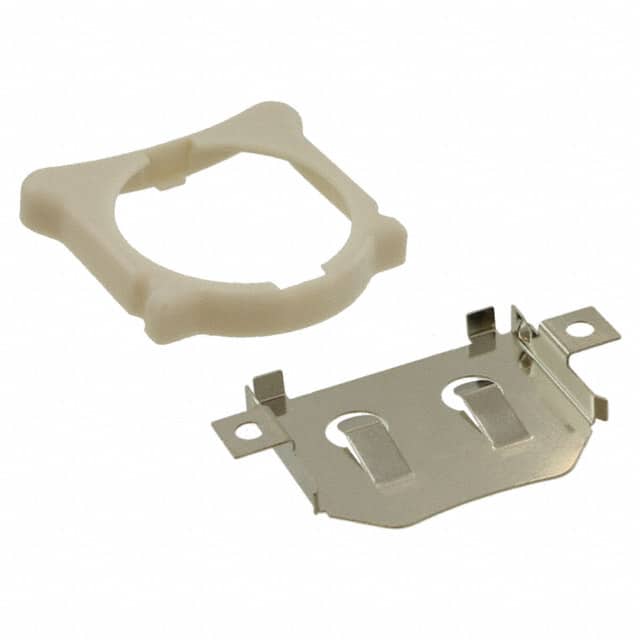

The BHX1-2032-SM from MPD (Memory Protection Devices) is a coin cell retainer designed for 20mm 2032 series batteries. It features SMD (SMT) Tab termination for surface mount assembly on PCBs. The retainer holds a single coin cell and has a height above board of 4.33mm. This component is suitable for applications requiring a secure battery retention solution with a low profile. The mounting type is PCB, Surface Mount, making it compatible with standard SMD processes. The retainer style ensures reliable contact with the battery terminals.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.93 | $0.93 |
| 10+ | $0.77 | $0.77 |
| 50+ | $0.68 | $0.68 |
| 100+ | $0.64 | $0.64 |
| 250+ | $0.59 | $0.59 |
| 500+ | $0.56 | $0.56 |
| 1,000+ | $0.53 | $0.53 |
| 3,000+ | $0.48 | $0.48 |
| 5,000+ | $0.47 | $0.47 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
It supports 20mm coin cell batteries, specifically the 2032 series.
It holds a single coin cell.
PCB, Surface Mount with SMD (SMT) Tab termination.
4.33mm.
RoHS3 Compliant (unverified).
