| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,000 pcs
|
3000 pcs | On Request | 1 | On Request | On Request | 15+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| ALS Measurement Time | |
| Ambient Light Sensor Range | |
| Interface | |
| Logic Voltage | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage (Minimum/Typical/Maximum) | |
| Output Type | |
| Peak Wavelength (Typical) | |
| Power Dissipation | |
| Proximity Detection | |
| Proximity Sensor Detection Range | |
| Standby mode current | |
| Storage Temperature | |
| Supplier Device Package | |
| Supplier Package | |
| Supply Current (ALS) | |
| Supply Current (PS) | |
| Supply Current (PS, driving LED) | |
| Type | |
| Voltage | |
| Wavelength |

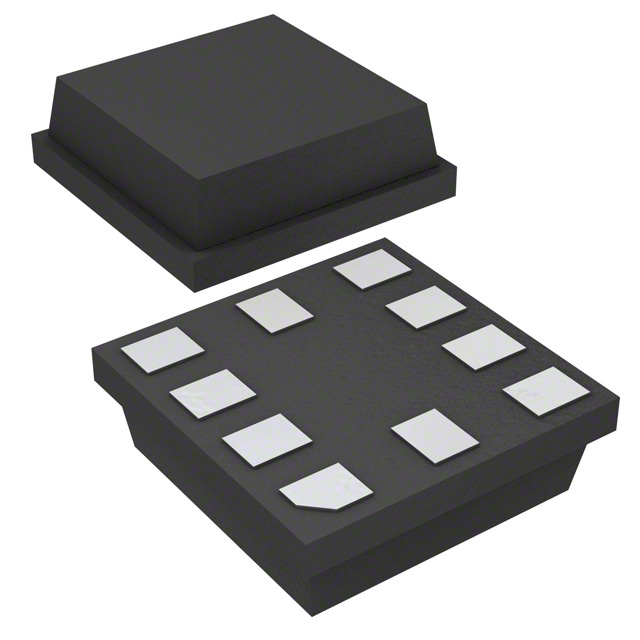

The BH1771GLC-E2 from ROHM Semiconductor combines an optical proximity sensor and a digital ambient light sensor into a single IC. The proximity sensor detects object approach by infrared LED light reflection and can drive up to three LEDs for touch-less motion detection. The ambient light sensor part measures illuminance from dark conditions up to direct sunlight, with a range of 1 to 65535 lx. This allows for adjustment of LCD display and keypad brightness, optimizing for lower current consumption or higher visibility.
The device supports an I2C bus interface, including f/s mode and Hs mode. It also features a power-down function for low current consumption and is compatible with a 1.8V logic interface. The ALS spectral responsibility closely approximates human eye response with a peak wavelength of typically 550nm. The proximity sensor has a configurable detection range of 10 to 100mm via the I2C bus and includes built-in ambient light cancellation.
Applications for the BH1771GLC-E2 include mobile phones, digital still cameras, portable game consoles, camcorders, car navigation systems, PDAs, and LCD displays. It is supplied in a 10-WLGA (2.8x2.8) surface mount package.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.3V to 3.6V.
The operating temperature range is -40°C to 85°C.
It is supplied in a 10-WLGA (2.8x2.8) surface mount package.
The interface type is I²C.
The proximity sensor detection range is configurable from 10mm to 100mm.
The ambient light sensor can detect a wide range of illuminance from 1 to 65535 lx.
