| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,900 pcs
|
3900 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Frequency | |
| Gain | |
| Mounting Type | |
| Noise Figure | |
| RF Type | |
| Supplier Device Package | |
| Supplier Package | |
| Test Frequency | |
| Voltage |

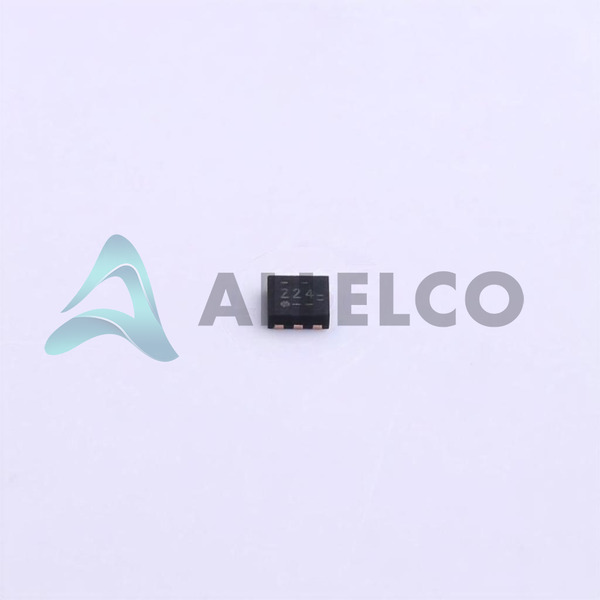

The BGU7224X from NXP Semiconductors is a specialized RF amplifier designed for ISM band applications. This component operates across a frequency range of 2.4GHz to 2.5GHz, offering a gain of 15dB and a low noise figure of 1dB. It requires an operating voltage between 3V and 3.6V and consumes a current of 13mA.
The amplifier is housed in a compact 6-HXSON package with dimensions of 1.6x1.6mm, featuring an exposed pad for enhanced thermal performance. It is designed for surface mount applications, making it suitable for integration into various electronic designs where space is a constraint. The test frequency for its specifications is 2.5GHz.
This RF amplifier is suitable for applications requiring signal amplification within the specified frequency bands. Its surface mount package and specific electrical characteristics make it a component choice for designers working on wireless communication modules and other RF-intensive circuits.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The BGU7224X operates within a voltage range of 3V to 3.6V.
The BGU7224X operates from 2.4GHz to 2.5GHz.
The BGU7224X offers a gain of 15dB.
The noise figure for the BGU7224X is 1dB.
The BGU7224X is supplied in a 6-HXSON package measuring 1.6x1.6mm, with an exposed pad.
The BGU7224X is designed for surface mount applications.
