BGS16GA14E6327XTSA1 The Infineon Technologies BGS16GA14E6327XTSA1 is an SP6T RF switch designed for LTE and W-CDMA applications. It operates within a frequency range of 100MHz to 3.8GHz.
Mfr Part #:

BGS16GA14E6327XTSA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BGS16GA14E6327XTSA1 is an SP6T RF switch designed for LTE and W-CDMA applications. It operates within a frequency range of 100MHz to 3.8GHz.
✓ Total Stock: 1,978 pcs
$ Price Range: $0.75

BGS16GA14E6327XTSA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Tomark Electronics Ltd ✓
Non-Authorised Inventory information
1,978 pcs
On Request
1978 pcs On Request 1 On Request On Request 2020-07-01 22:19:00 On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BGS16GA14E6327XTSA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Circuit
Frequency Range
Insertion Loss
Isolation
Mounting Type
Operating Temperature
Package / Case
RF Type
Storage Temperature
Supplier Device Package
Tape & Reel
Test Frequency
Voltage
Voltage Supply
View Similar Products (0)

BGS16GA14E6327XTSA1 Description

Short technical summary and product information.

The Infineon Technologies BGS16GA14E6327XTSA1 is a Single Pole Six Throw (SP6T) RF switch suitable for applications requiring high-frequency signal routing. It supports LTE and W-CDMA RF types, operating across a broad frequency range from 100MHz to 3.8GHz.



This component features a low insertion loss of 0.5dB and high isolation of 33dB, ensuring signal integrity. It is designed for a supply voltage of 3V and operates within an industrial temperature range of -30°C to 85°C.

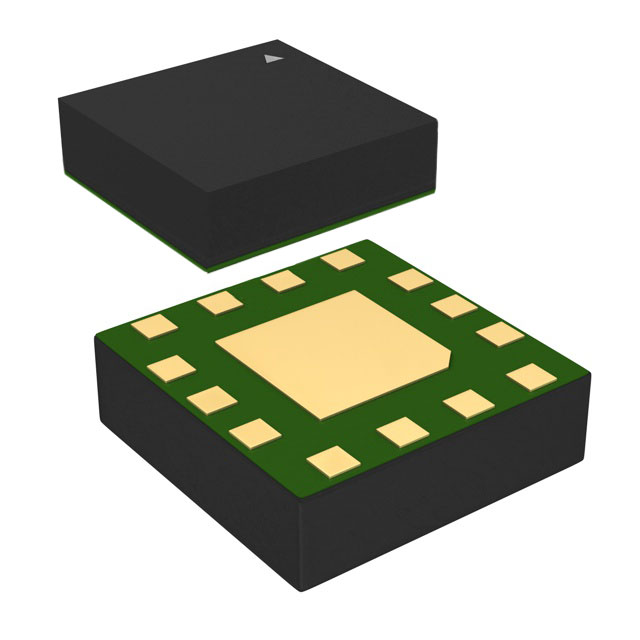

The BGS16GA14E6327XTSA1 is available in a compact 14-UFQFN Exposed Pad package, designed for surface mounting. Its supplier device package is identified as PG-ATSLP-14-8, facilitating integration into various electronic designs.

BGS16GA14E6327XTSA1 Quick Information

Product Type: RF Switch
Canonical Name: Infineon Technologies BGS16GA14E6327XTSA1 SP6T RF Switch
Subcategory: SP6T

BGS16GA14E6327XTSA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BGS16GA14E6327XTSA1 Estimated Pricing

Qty Low High
1+ $0.75 $0.75

Estimated market price range - modelled values for guidance only, not live distributor offers.

BGS16GA14E6327XTSA1 Features

  • SP6T RF switch for signal routing.
  • Operates from 100MHz to 3.8GHz.
  • Low 0.5dB insertion loss.
  • High 33dB isolation.
  • Surface mount 14-UFQFN package.

BGS16GA14E6327XTSA1 Applications

  • Suitable for LTE and W-CDMA RF switching.
  • Used in mobile communication signal routing.
  • Ideal for high-frequency RF switching applications.
  • Applicable in RF test and measurement equipment.

BGS16GA14E6327XTSA1 FAQs

7 frequently asked questions generated from this part’s specifications.
What is the circuit type of the BGS16GA14E6327XTSA1?

The circuit type is SP6T.

What is the frequency range for this RF switch?

The frequency range is 100MHz to 3.8GHz.

What is the insertion loss of the BGS16GA14E6327XTSA1?

The insertion loss is 0.5dB.

How much isolation does this RF switch provide?

The isolation is 33dB.

What is the supply voltage required for this component?

The supply voltage is 3V.

What is the operating temperature range?

The operating temperature range is -30°C to 85°C.

What type of package is the BGS16GA14E6327XTSA1 in?

It is in a 14-UFQFN Exposed Pad package.
