| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1,500 pcs
|
1500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

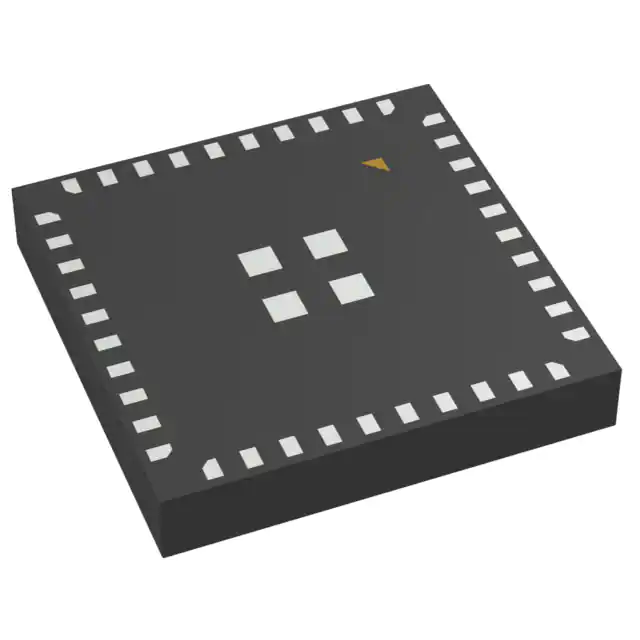

The BGM220SC22WGA2 from Silicon Labs is a Bluetooth v5.2 transceiver module, part of the Wireless Gecko family. This module operates in the 2.4GHz to 2.4835GHz frequency range, supporting a data rate of 2Mbps and GFSK modulation.
Key electrical specifications include an output power of 6dBm, a sensitivity of -106.4dBm, and a supply voltage range of 1.8V to 3.8V. It consumes 4.2mA to 4.8mA during receiving and 4.6mA to 8.8mA during transmitting. The module features 352kB Flash and 32kB RAM memory.
Designed for surface mounting, the BGM220SC22WGA2 comes in a 44-SMD Module package. It supports various serial interfaces including ADC, I2C, I2S, PWM, SPI, IrDA, UART, and USART. The operating temperature range is -40°C to 85°C (TA).
This module utilizes the EFR32BG22 IC and features an integrated chip antenna. It is RoHS3 compliant and has a Moisture Sensitivity Level (MSL) of 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage for this module is between 1.8V and 3.8V.
The BGM220SC22WGA2 is provided in a 44-SMD Module package.
The operating temperature range is -40°C to 85°C (TA).
The data rate for this module is 2Mbps.
The output power is 6dBm.
It supports ADC, I2C, I2S, PWM, SPI, IrDA, UART, and USART serial interfaces.
The module has 352kB Flash and 32kB RAM.
