| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
4,565 pcs
|
4565 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Core Clock Speed | |
| Current | |
| Data Rate | |
| Frequency | |
| Memory Size | |
| Modulation | |
| Mounting Type | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RAM Memory | |
| RF Family | |
| Sensitivity | |
| Serial Interfaces | |
| TX power | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

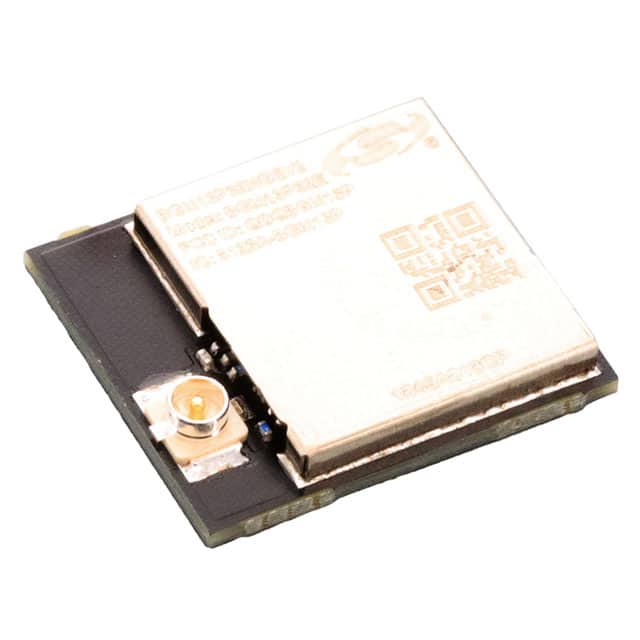

The Silicon Labs BGM13P32F512GE-V2R is a Bluetooth 5.0 LE compliant module designed for robust RF performance and low energy consumption. Based on the EFR32BG13 Blue Gecko SoC, it features a 32-bit ARM Cortex-M4 core operating at 38.4 MHz, providing ample processing power for demanding applications.
Key specifications include 512kB of flash memory and 64kB of RAM, making it suitable for Bluetooth Mesh networking. The module supports data rates up to 2Mbps and offers a transmit power of up to +19 dBm, with a receive sensitivity of -94.8 dBm at 1 Mbps. It operates within a voltage range of 1.8V to 3.8V and has an operating temperature range of -40°C to 85°C.
This module is available in Antenna or U.FL connector variants and is designed for surface mount applications. It supports multiple serial interfaces including GPIO, I²C, I²S, SPI, and UART, facilitating integration into various embedded systems. The BGM13P series is well-suited for IoT end devices, gateways, health and wellness products, industrial automation, and smart home applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 1.8V to 3.8V.
The operating temperature range is -40°C to 85°C.
This module has 512kB of flash memory and 64kB of RAM.
The module supports a transmit power of up to +19 dBm.
The receive sensitivity is -94.8 dBm at 1 Mbps.
Supported serial interfaces include GPIO, I²C, I²S, SPI, and UART.
The package type is a module, and it is designed for surface mounting.
