| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,501 pcs
|
3501 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Antenna Type | |
| Approval Agency | |
| Class | |
| Core | |
| Core Clock Speed | |
| Current | |
| Data Rate | |
| Features | |
| Flash Memory | |
| Frequency | |
| Frequency Range | |
| HTS Code | |
| Maximum Operating Temperature | |
| Memory Size | |
| Minimum Operating Temperature | |
| Modulation | |
| Modulation Technique | |
| Mounting Type | |
| Operating Supply Voltage | |
| Operating Temperature | |
| Power | |
| Protocol | |
| RAM | |
| RF Family | |
| Range ° | |
| Rx Sensitivity | |
| Sensitivity | |
| Serial Interfaces | |
| Shielding | |
| Supply Current Receiving | |
| Supply Current Transmitting | |
| TX power | |
| Tape & Reel | |
| Utilized IC | |
| Voltage |

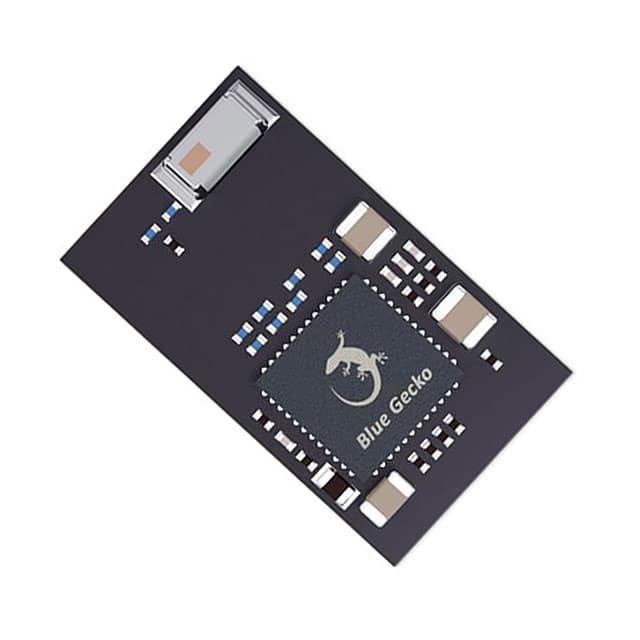

The Silicon Labs BGM113A256V21 is a compact Bluetooth 4.2 module designed for low-power wireless applications. It integrates a Bluetooth radio, software stack, and GATT-based profiles, allowing it to host end-user applications without an external microcontroller, making it suitable for size, price, and power-constrained devices.
Key features include a 32-bit ARM Cortex-M4 core running at 38.4 MHz, 256kB of flash memory, and 32kB of RAM. The module supports Bluetooth 4.2 and operates in the 2.4 GHz band, offering a TX power of up to +3 dBm and an RX sensitivity down to -92 dBm, with a range of up to 50 meters. It also includes an integrated antenna and a DC-DC converter.
This module is ideal for a variety of applications such as IoT sensors, end devices, commercial and retail products, health and wellness devices, and industrial automation. It provides flexible hardware interfaces for connecting to different peripherals and sensors. The operating temperature range is -40°C to +85°C, and it is surface-mount compatible.
With its onboard Bluetooth stack and autonomous hardware crypto accelerator, the BGM113A256V21 simplifies application development for Bluetooth low energy connectivity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The TX power is up to +3 dBm.
The RX sensitivity is down to -92 dBm.
The operating supply voltage is 3.3 V.
The operating temperature range is -40°C to +85°C.
It has 256kB of flash memory and 32kB of RAM.
It supports I²C, SPI, and UART interfaces.
The data rate is 1 Mb/s.
