BGA7H1N6E6327XTSA1 The Infineon Technologies BGA7H1N6E6327XTSA1 is a Low Noise Amplifier designed for LTE applications. It operates within a frequency range of 2.3GHz to 2.69GHz.
Mfr Part #:

BGA7H1N6E6327XTSA1

Available from 1 distributors
Mfr Name: Infineon Technologies
Infineon Technologies
The Infineon Technologies BGA7H1N6E6327XTSA1 is a Low Noise Amplifier designed for LTE applications. It operates within a frequency range of 2.3GHz to 2.69GHz.
✓ Total Stock: 25,000 pcs
$ Price Range: $0.88

BGA7H1N6E6327XTSA1 Available from 1 distributor

✓ Authorised
✓ Non-Authorised
Distributor Stock Pricing MOQ PKG Lead Time Date Code On Order Quantity On Order Delivery
Optech Co.,Limited ✓
Non-Authorised Inventory information
25,000 pcs
On Request
25000 pcs On Request 1 On Request On Request 1427+ On Request On Request
DistyParts aggregates offers from multiple distributors. Final prices, lead times and terms are subject to the distributors' discretion and may change without prior notice. DistyParts is not liable for any discrepancies.

BGA7H1N6E6327XTSA1 Specifications Quick View

Most important parameters for selection – full specs in datasheet.
Category
Manufacturer Name
Current
Frequency
Gain
Lead Spacing
Mounting Type
Noise Figure
P1dB
RF Type
Supplier Device Package
Voltage
View Similar Products (0)

BGA7H1N6E6327XTSA1 Description

Short technical summary and product information.

The Infineon Technologies BGA7H1N6E6327XTSA1 is a Silicon Germanium Low Noise Amplifier (LNA) specifically designed for LTE applications. This component operates within the 2.3GHz to 2.69GHz frequency range, making it suitable for mobile communication systems.



Key electrical characteristics include a typical noise figure of 0.6dB and a gain of 12.5dB. It consumes a typical current of 4.7mA and has a P1dB of -8dBm. The amplifier supports an operating voltage range from 1.5V to 3.3V.

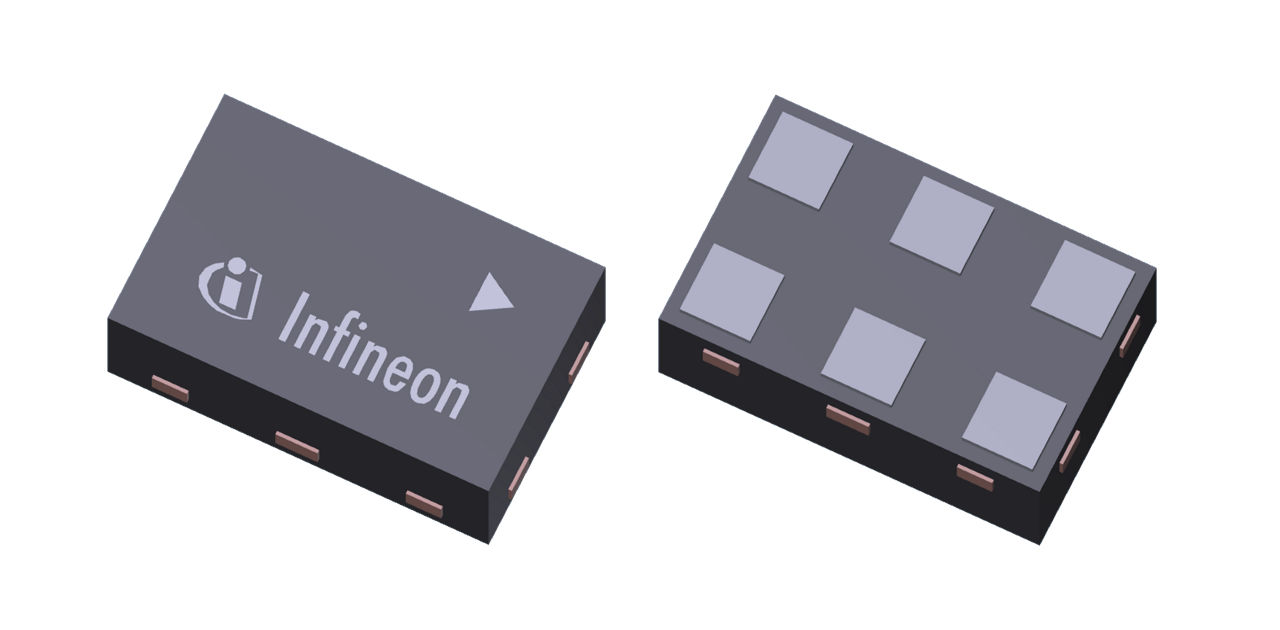

This LNA is housed in a 6-XFDFN package, identified by the supplier as PG-TSNP-6-2. It is designed for surface mount applications, facilitating integration into compact electronic designs. The component is specified with a Moisture Sensitivity Level (MSL) of 1, indicating unlimited usability under standard conditions.

BGA7H1N6E6327XTSA1 Quick Information

Product Type: Low Noise Amplifier
Canonical Name: BGA7H1N6E6327XTSA1 Low Noise Amplifier
Subcategory: Low Noise Amplifier (LNA)

BGA7H1N6E6327XTSA1 Compliance

RoHS Status: RoHS Compliant
Moisture Sensitivity Level (MSL): 1 Unlimited
REACH Status: REACH Unaffected

BGA7H1N6E6327XTSA1 Estimated Pricing

Qty Low High
1+ $0.88 $0.88

Estimated market price range - modelled values for guidance only, not live distributor offers.

BGA7H1N6E6327XTSA1 Features

  • Low noise figure of 0.6dB typical.
  • Provides 12.5dB gain.
  • Operates from 1.5V to 3.3V.
  • Suitable for LTE applications.
  • Surface mount 6-XFDFN package.

BGA7H1N6E6327XTSA1 Applications

  • Ideal for LTE transceiver front-ends
  • Used in wireless communication modules
  • Suitable for RF signal amplification
  • Supports space-constrained device designs

BGA7H1N6E6327XTSA1 FAQs

5 frequently asked questions generated from this part’s specifications.
What is the typical noise figure of the BGA7H1N6E6327XTSA1?

The typical noise figure is 0.6 dB.

What is the operating voltage range for this RF amplifier?

The operating voltage range is 1.5 V to 3.3 V.

What is the frequency range supported by the BGA7H1N6E6327XTSA1?

It supports a frequency range of 2.3 GHz to 2.69 GHz.

What package type is the BGA7H1N6E6327XTSA1 supplied in?

It is supplied in a 6-XFDFN package.

What is the Moisture Sensitivity Level (MSL) for this component?

The Moisture Sensitivity Level is 1.
