| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current Rating | |
| Current Rating (Amps) | |
| For Use With | |
| Fuse Size | |
| Fuse Type | |
| Fuseholder Type | |
| Lead Style | |
| Mounting Type | |
| Number of Circuits | |
| Termination Style | |
| Voltage | |
| Voltage Rating |

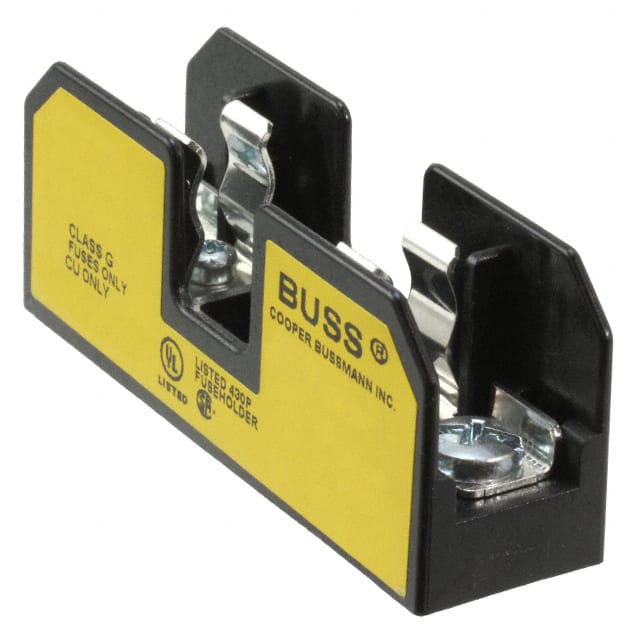

The BG3031S is a single-circuit fuse block designed for use with Class G cartridge fuses measuring 0.394" diameter by 1.625" length (10mm x 41.28mm). It is rated for 30A continuous current and 480V operation. Mounting is via chassis mount, and termination is provided by both screw terminals and quick connect tabs for flexibility. The block is constructed to accommodate a single circuit. Compliance with RoHS, REACH, and MSL Level 1 is indicated but unverified. This fuse block is suitable for use in industrial control panels, power distribution, and other applications requiring overcurrent protection with Class G fuses.
| Qty | Low | High |
|---|---|---|
| 1+ | $42.32 | $42.32 |
| 5+ | $35.11 | $35.11 |
| 10+ | $32.38 | $32.38 |
| 50+ | $26.82 | $26.82 |
| 100+ | $24.71 | $24.71 |
| 250+ | $24.44 | $24.44 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
30 A.
480V.
Class G cartridge fuses, 13/32" x 1-5/8".
1 circuit.
Chassis mount.
Screw terminal and quick connect.
0.394" diameter x 1.625" length (10mm x 41.28mm).
